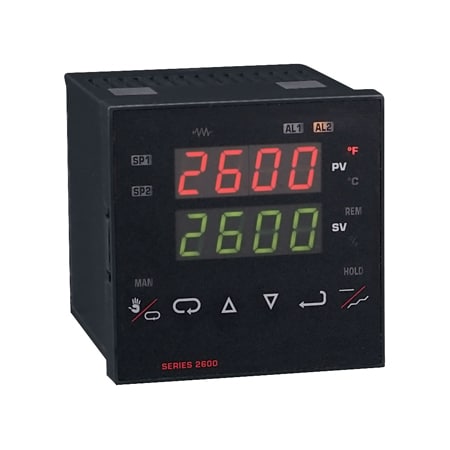

다목적 온도/프로세스 컨트롤러 - 범용 입력 및 자동 조정 기능 포함
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Control Output | Display Note | Display Type | Enclosure Ratings | Impedance Input | Input Control Signal | Input Type | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Type (A) | Output Type (B) | RTD Input Range | Supply Power Note | Supply Power Type | Supply Voltage | Switch Rating | Switch Type | Temperature Sensor Type | Thermocouple Input Range Note | Voltage Input Range | Weight | Current Output Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26150가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | Proportional Current | Two 4 digit, 7 segment, 0.56˝ (14.2 mm) high LED | LED | IP66, NEMA Type 4X | Thermocouple: 3 MΩ; Voltage: 5000 Ω; Current: 10 Ω; RTD Current: 200 µA | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/4 DIN | 4 | 131 °F | 14 °F | Proportional current: 0-20 mA DC, scalable into 600 ohms maximum | Current | N/A | Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F | 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | - | - | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F | ± 10 mVdc, 0 to 10 Vdc | 13 oz | 0 to 20 mA dc | |
26133가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | SPST Relay, Alarm | Two 4 digit, 7 segment, 0.56˝ (14.2 mm) high LED | LED | IP66, NEMA Type 4X | Thermocouple: 3 MΩ; Voltage: 5000 Ω; Current: 10 Ω; RTD Current: 200 µA | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/4 DIN | 4 | 131 °F | 14 °F | Relay: SPDT,10A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relay: SPST, 3A @ 240 VAC resistive | Relay | Relay | Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F | 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 10 A @ 240 Vac, 1/2 hp @ 120 Vac, 1/3 hp @ 240 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F | ± 10 mVdc, 0 to 10 Vdc | 13 oz | - | |
26130가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | SPST Relay, Alarm | Two 4 digit, 7 segment, 0.56˝ (14.2 mm) high LED | LED | IP66, NEMA Type 4X | Thermocouple: 3 MΩ; Voltage: 5000 Ω; Current: 10 Ω; RTD Current: 200 µA | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/4 DIN | 4 | 131 °F | 14 °F | Relay: SPDT,10A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relay: SPST, 3A @ 240 VAC resistive | Relay | N/A | Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F | 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 10 A @ 240 Vac, 1/2 hp @ 120 Vac, 1/3 hp @ 240 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F | ± 10 mVdc, 0 to 10 Vdc | 13 oz | - |
