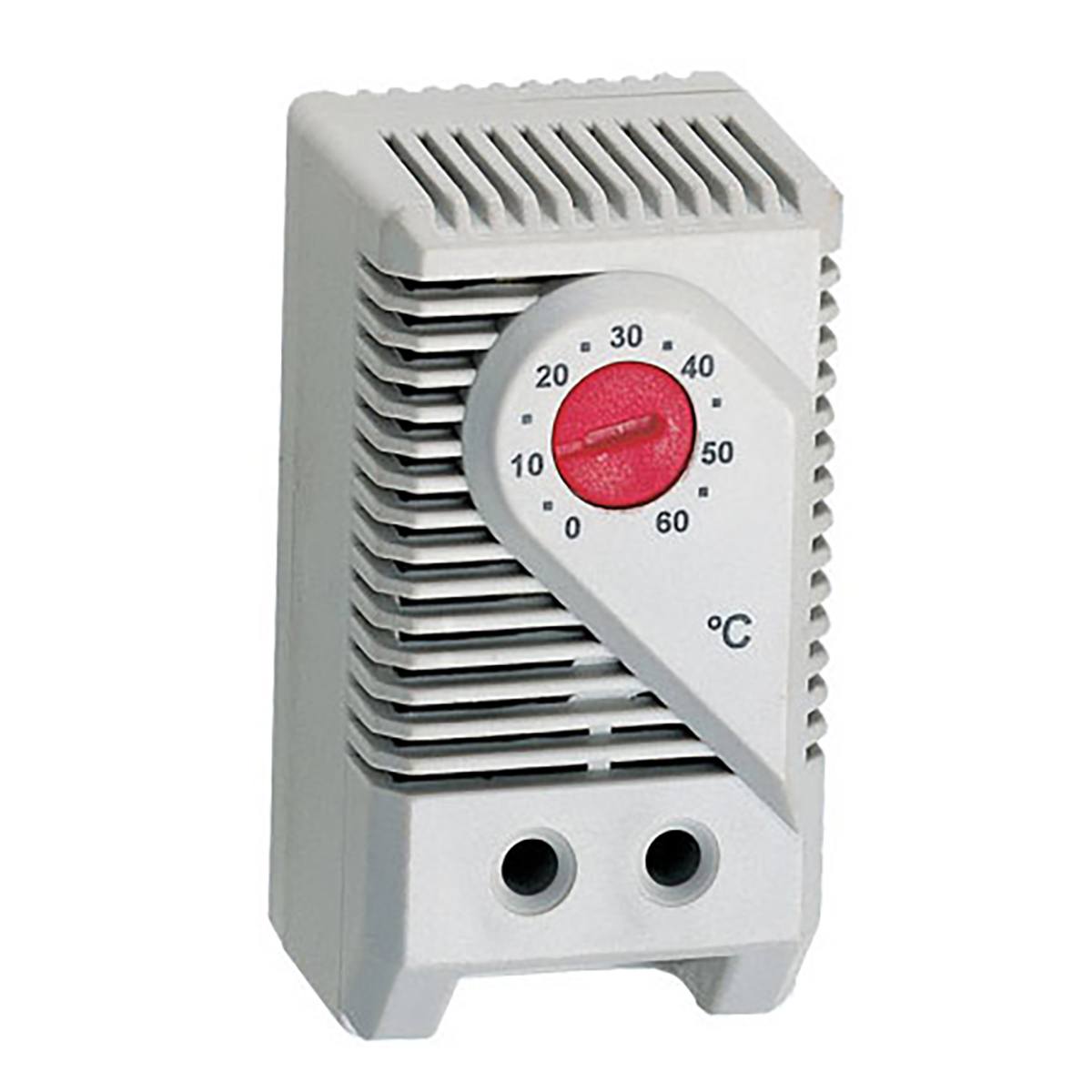

소형 컴팩트 디자인 온도조절기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 1 | Altitude | Approvals | Contact Type | Control Mode | Current Rating | Current Rating Note | EMC | Electrical Connection | Electrical Connection Note | Enclosure Ratings | Fitting position | Form factor | Frequency | Height | Inrush Current | Length | Number of Circuits | Operating Temperature, Max | Operating Temperature, Min | Process Temperature, Max | Process Temperature, Min | Protection | Relative Humidity | Service Life | Storage Temperature, Max | Storage Temperature, Min | Supply Voltage | Temperature Difference Note | Temperature Range | Weight | Width | Operating Current | Switching Capacity, Max | Tolerance | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KT011479-U가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Normally Open | II :upto 5000 m, III: upto 2000 m | UL File No. E164102 EAC | Snap-Action Contact | Cooling | 15 A | 15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W | EN 60715 | Quick Connect Terminal | 2 Push-In clamps rigid wire 2.5 mm² (AWG 14) stranded wire 1.5 mm² (AWG 16) | IP20 | Variable | Clip for 35 mm DIN Rail | 50/60 Hz | 60 mm | AC 16 A for 10 sec | 41 mm | N/A | 80 °C | -45 °C | 140 °F | 32 °F | II | max. 90% RH (non-condensing) | 100,000 cycles | 80 °C | -45 °C | 120 to 250 Vac | 7K (± 4K) | Adjustable | 40 g | 33 mm | - | - | - | |
KT011409-U가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Normally Closed | II :upto 5000 m, III: upto 2000 m | UL File No. E164102 EAC | Snap-Action Contact | Heating | 15 A | 15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W | EN 60715 | Quick Connect Terminal | 2 Push-In clamps rigid wire 2.5 mm² (AWG 14) stranded wire 1.5 mm² (AWG 16) | IP20 | Variable | Clip for 35 mm DIN Rail | 50/60 Hz | 60 mm | AC 16 A for 10 sec | 41 mm | N/A | 80 °C | -45 °C | 60 °C | 0 °C | II | max. 90% RH (non-condensing) | 100,000 cycles | 80 °C | -45 °C | 120 to 250 Vac | 7K (± 4K) | Adjustable | 40 g | 33 mm | - | - | - | |
KT011469-U가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Normally Closed | II :upto 5000 m, III: upto 2000 m | UL File No. E164102 EAC | Snap-Action Contact | Heating | 15 A | 15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W | EN 60715 | Quick Connect Terminal | 2 Push-In clamps rigid wire 2.5 mm² (AWG 14) stranded wire 1.5 mm² (AWG 16) | IP20 | Variable | Clip for 35 mm DIN Rail | 50/60 Hz | 60 mm | AC 16 A for 10 sec | 41 mm | N/A | 80 °C | -45 °C | 140 °F | 32 °F | II | max. 90% RH (non-condensing) | 100,000 cycles | 80 °C | -45 °C | 120 to 250 Vac | 7K (± 4K) | Adjustable | 40 g | 33 mm | - | - | - | |
KT011479가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NO Close on Rise | - | - | N/A | Cooling | 15 A | - | EN50022 | Screw Terminal | 2-Pole terminal for AWG 14 max [2.5 mm² (0.10 in²)] | IP20, NEMA Type 2 | - | Clip for 35 mm DIN Rail | - | 60 mm | - | 43 mm | N/A | 70 °C | -45 °C | 60 °C | 0 °C | - | - | 100,000 cycles | 70 °C | -45 °C | 120 to 250 Vac | 12.6°F ±5.4°F) | Adjustable | 40 g | 33 mm | 20 mA | 15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc | ±7°F (4K) | |
KT011419가격 문의 | OMEGA Engineering | NO Close on Rise | - | - | N/A | Cooling | 15 A | - | EN50022 | Screw Terminal | 2-Pole terminal for AWG 14 max [2.5 mm² (0.10 in²)] | IP20, NEMA Type 2 | - | Clip for 35 mm DIN Rail | - | 60 mm | - | 43 mm | N/A | 70 °C | -45 °C | 140 °F | 32 °F | - | - | 100,000 cycles | 70 °C | -45 °C | 120 to 250 Vac | 12.6°F ±5.4°F) | Adjustable | 40 g | 33 mm | 20 mA | 15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc | ±7°F (4K) | |
KT011419-U가격 문의20 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Normally Open | II :upto 5000 m, III: upto 2000 m | UL File No. E164102 EAC | Snap-Action Contact | Cooling | 15 A | 15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W | EN 60715 | Quick Connect Terminal | 2 Push-In clamps rigid wire 2.5 mm² (AWG 14) stranded wire 1.5 mm² (AWG 16) | IP20 | Variable | Clip for 35 mm DIN Rail | 50/60 Hz | 60 mm | AC 16 A for 10 sec | 41 mm | N/A | 80 °C | -45 °C | 60 °C | 0 °C | II | max. 90% RH (non-condensing) | 100,000 cycles | 80 °C | -45 °C | 120 to 250 Vac | 7K (± 4K) | Adjustable | 40 g | 33 mm | - | - | - |
