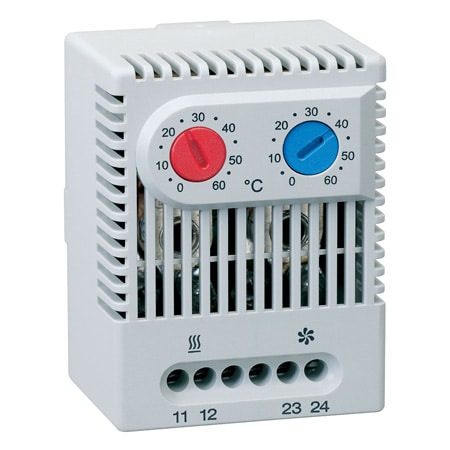

ZR011-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Approvals	Contact Type	Control Mode	Current Rating	Current Rating Note	EMC	Electrical Connection	Electrical Connection Note	Enclosure Ratings	Form factor	Height	Length	Number of Circuits	Operating Current	Operating Temperature, Max	Operating Temperature, Min	Process Temperature, Max	Process Temperature, Min	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Switching Capacity, Max	Temperature Difference Note	Temperature Range	Tolerance	Weight	Width
ZR0117600087,060 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	-	UL,CSA	N/A	Heating, Cooling	5 A	Two NO 5A	EN50022	Screw Terminal	4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]	IP20, NEMA Type 2	Clip for 35 mm DIN Rail	67 mm	46 mm	N/A	20 mA	70 °C	-45 °C	60 °C	0 °C	70 °C	-45 °C	121 to 250 Vac, 24 to 72 Vdc	10(2) A 250 Vac, 30 W dc	12.6°F ±5.4°F)	Adjustable	±7.2°F (4K)	90 g	50 mm
ZR0117200193,040 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	NC - Open on Rise, NO - Close on Rise	UL,CSA	N/A	Heating, Cooling	10 A	NC 10 A, NO 5 A	EN50022	Screw Terminal	4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]	IP20, NEMA Type 2	Clip for 35 mm DIN Rail	67 mm	46 mm	N/A	20 mA	70 °C	-45 °C	140 °F	32 °F	70 °C	-45 °C	121 to 250 Vac, 24 to 72 Vdc	10(2) A 250 Vac, 30 W dc	12.6°F ±5.4°F)	Adjustable	±7.2°F (4K)	90 g	50 mm
ZR01172000134,300 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	NC - Open on Rise, NO - Close on Rise	UL,CSA	N/A	Heating, Cooling	10 A	NC 10 A, NO 5 A	EN50022	Screw Terminal	4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]	IP20, NEMA Type 2	Clip for 35 mm DIN Rail	67 mm	46 mm	N/A	20 mA	70 °C	-45 °C	60 °C	0 °C	70 °C	-45 °C	121 to 250 Vac, 24 to 72 Vdc	10(2) A 250 Vac, 30 W dc	12.6°F ±5.4°F)	Adjustable	±7.2°F (4K)	90 g	50 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Approvals

Contact Type

Control Mode

Current Rating

Current Rating Note

EMC

Electrical Connection

Electrical Connection Note

Enclosure Ratings

Form factor

Height

Length

Number of Circuits

Operating Current

Operating Temperature, Max

Operating Temperature, Min

Process Temperature, Max

Process Temperature, Min

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Switching Capacity, Max

Temperature Difference Note

Temperature Range

Tolerance

Weight

Width

수량 / 장바구니

ZR0117600087,060 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

UL,CSA

N/A

Heating, Cooling

5 A

Two NO 5A

EN50022

Screw Terminal

4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]

IP20, NEMA Type 2

Clip for 35 mm DIN Rail

67 mm

46 mm

N/A

20 mA

70 °C

-45 °C

60 °C

0 °C

70 °C

-45 °C

121 to 250 Vac, 24 to 72 Vdc

10(2) A 250 Vac, 30 W dc

12.6°F ±5.4°F)

Adjustable

±7.2°F (4K)

90 g

50 mm

ZR0117200193,040 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

NC - Open on Rise, NO - Close on Rise

UL,CSA

N/A

Heating, Cooling

10 A

NC 10 A, NO 5 A

EN50022

Screw Terminal

4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]

IP20, NEMA Type 2

Clip for 35 mm DIN Rail

67 mm

46 mm

N/A

20 mA

70 °C

-45 °C

140 °F

32 °F

70 °C

-45 °C

121 to 250 Vac, 24 to 72 Vdc

10(2) A 250 Vac, 30 W dc

12.6°F ±5.4°F)

Adjustable

±7.2°F (4K)

90 g

50 mm

ZR01172000134,300 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

NC - Open on Rise, NO - Close on Rise

UL,CSA

N/A

Heating, Cooling

10 A

NC 10 A, NO 5 A

EN50022

Screw Terminal

4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]

IP20, NEMA Type 2

Clip for 35 mm DIN Rail

67 mm

46 mm

N/A

20 mA

70 °C

-45 °C

60 °C

0 °C

70 °C

-45 °C

121 to 250 Vac, 24 to 72 Vdc

10(2) A 250 Vac, 30 W dc

12.6°F ±5.4°F)

Adjustable

±7.2°F (4K)

90 g

50 mm
