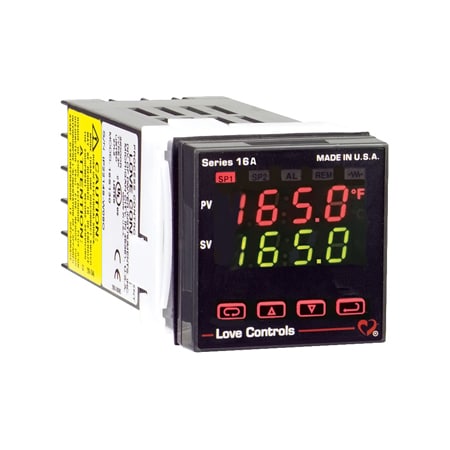

프로그래머블 온도/프로세스 컨트롤러, 16A, 범용 입력, 방수
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 39개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Compliance | Control Output | Current Output Range | Display Note | Display Resolution | Display Type | Enclosure Ratings | Input Control Signal | Input Type | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Type (A) | Output Type (B) | Power Consumption | RTD Input Range | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Sensor Type | Thermocouple Input Range Note | Voltage Input Range | Weight | SSR Output Range | Voltage Output Range | Switch Rating | Switch Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16A2155가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Current | Current | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | - | - | |
16A2153가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, SPST Relay, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Current | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | - | - | |
16A2152가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, Switched Voltage, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Switched voltage: 15 VDC at 20 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Current | Voltage Pulse | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | - | - | |
16A2151가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, SSR Relay, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Current | SSR | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | - | - | |
16A2135가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SPST Relay, Proportional Current, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Relay | Current | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2150가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Current | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | - | - | |
16A2133가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SPST Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Relay | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2132가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SPST Relay, Switched Voltage Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Switched voltage: 15 VDC at 20 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Relay | Voltage Pulse | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2131가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, SPST Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Relay | SSR | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2130가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SPST Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Relay | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | - | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2125가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, Proportional Current, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Switched voltage: 15 VDC at 20 mA Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Voltage Pulse | Current | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | - | - | |
16A2122가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Switched voltage: 15 VDC at 20 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Voltage Pulse | Voltage Pulse | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | - | - | |
16A2123가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, SPST Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Switched voltage: 15 VDC at 20 mA Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Voltage Pulse | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | - | - | |
16A2121가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, SSR Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Switched voltage: 15 VDC at 20 mA SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Voltage Pulse | SSR | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | 15 Vdc | - | - | |
16A2120가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | Switched voltage: 15 VDC at 20 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | Voltage Pulse | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | - | 15 Vdc | - | - | |
16A2115가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SSR Relay, Proportional Current, Alarm | 0 to 20 mA dc | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Proportional current: 0 to 20 mADC, scalable, into 600 ohms maximum Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | SSR | Current | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | - | - | |
16A2113가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, SPST Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | SSR | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | |
16A2112가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SSR Relay. Switched Voltage, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Switched voltage: 15 VDC at 20 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | SSR | Voltage Pulse | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | 15 Vdc | - | - | |
16A2111가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SSR Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | SSR | SSR | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | - | - | |
16A2110가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | SSR Relay, Alarm | - | Two four-digit LED displays, 0.3 in (7.62 mm) high. | 1°/ 0.1° /1 Count | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | 1/16 DIN | 4 | 131 °F | 14 °F | SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC | SSR | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 8 oz | 2.0 A @ 240 Vac | - | - | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
