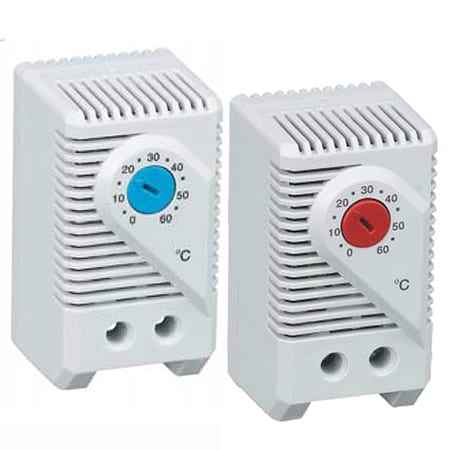

KTO-KTS-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 4개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Approvals	Contact Type	Control Mode	Current Rating	Current Rating Note	EMC	Electrical Connection	Electrical Connection Note	Enclosure Ratings	Fitting position	Form factor	Height	Length	Number of Circuits	Operating Temperature, Max	Operating Temperature, Min	Process Temperature, Max	Process Temperature, Min	Service Life	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Switching Capacity, Max	Temperature Difference Note	Temperature Range	Weight	Width
KT011469-A45,510 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Normally Closed	CE	Snap-Action Contact	Heating	15 A	15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W	acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series	Screw Terminal	2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²	IP20	Variable	Clip for 35 mm DIN Rail	60 mm	43 mm	N/A	80 °C	-20 °C	60 °C	0 °C	>100,00 cycles	80 °C	-45 °C	120 to 250 Vac	15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc	7K (± 4K)	Adjustable	40 g	33 mm
KT011479-A45,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Normally Open	CE	Snap-Action Contact	Cooling	15 A	15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W	acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series	Screw Terminal	2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²	IP20	Variable	Clip for 35 mm DIN Rail	60 mm	43 mm	N/A	80 °C	-20 °C	60 °C	0 °C	>100,00 cycles	80 °C	-45 °C	120 to 250 Vac	15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc	7K (± 4K)	Adjustable	40 g	33 mm
KT011419-A45,510 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Normally Open	CE	Snap-Action Contact	Cooling	15 A	15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W	acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series	Screw Terminal	2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²	IP20	Variable	Clip for 35 mm DIN Rail	60 mm	43 mm	N/A	80 °C	-20 °C	140 °F	32 °F	>100,00 cycles	80 °C	-45 °C	120 to 250 Vac	15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc	7K (± 4K)	Adjustable	40 g	33 mm
KT011409-A45,510 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Normally Closed	CE	Snap-Action Contact	Heating	15 A	15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W	acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series	Screw Terminal	2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²	IP20	Variable	Clip for 35 mm DIN Rail	60 mm	43 mm	N/A	80 °C	-20 °C	140 °F	32 °F	>100,00 cycles	80 °C	-45 °C	120 to 250 Vac	15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc	7K (± 4K)	Adjustable	40 g	33 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Approvals

Contact Type

Control Mode

Current Rating

Current Rating Note

EMC

Electrical Connection

Electrical Connection Note

Enclosure Ratings

Fitting position

Form factor

Height

Length

Number of Circuits

Operating Temperature, Max

Operating Temperature, Min

Process Temperature, Max

Process Temperature, Min

Service Life

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Switching Capacity, Max

Temperature Difference Note

Temperature Range

Weight

Width

수량 / 장바구니

KT011469-A45,510 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Normally Closed

Snap-Action Contact

Heating

15 A

15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W

acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series

Screw Terminal

2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²

IP20

Variable

Clip for 35 mm DIN Rail

60 mm

43 mm

N/A

80 °C

-20 °C

60 °C

0 °C

>100,00 cycles

80 °C

-45 °C

120 to 250 Vac

15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc

7K (± 4K)

Adjustable

40 g

33 mm

KT011479-A45,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Normally Open

Snap-Action Contact

Cooling

15 A

15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W

acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series

Screw Terminal

2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²

IP20

Variable

Clip for 35 mm DIN Rail

60 mm

43 mm

N/A

80 °C

-20 °C

60 °C

0 °C

>100,00 cycles

80 °C

-45 °C

120 to 250 Vac

15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc

7K (± 4K)

Adjustable

40 g

33 mm

KT011419-A45,510 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Normally Open

Snap-Action Contact

Cooling

15 A

15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W

acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series

Screw Terminal

2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²

IP20

Variable

Clip for 35 mm DIN Rail

60 mm

43 mm

N/A

80 °C

-20 °C

140 °F

32 °F

>100,00 cycles

80 °C

-45 °C

120 to 250 Vac

15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc

7K (± 4K)

Adjustable

40 g

33 mm

KT011409-A45,510 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Normally Closed

Snap-Action Contact

Heating

15 A

15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W

acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series

Screw Terminal

2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²

IP20

Variable

Clip for 35 mm DIN Rail

60 mm

43 mm

N/A

80 °C

-20 °C

140 °F

32 °F

>100,00 cycles

80 °C

-45 °C

120 to 250 Vac

15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc

7K (± 4K)

Adjustable

40 g

33 mm
