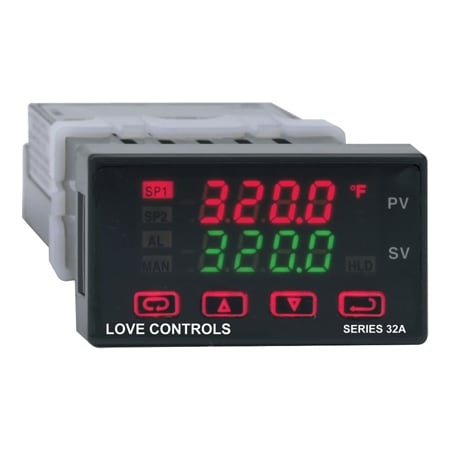

소형 1/32 DIN 온도/프로세스 컨트롤러, 듀얼 디스플레이 및 범용 입력
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Compliance | Control Output | Display Note | Display Type | Enclosure Ratings | Input Control Signal | Input Type | Memory Backup | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Type (A) | Output Type (B) | Power Consumption | RTD Input Range | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Sensor Type | Thermocouple Input Range Note | Voltage Input Range | Voltage Output Range | Weight | Switch Rating | Switch Type | Current Output Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
32A1531,005,110 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current, SPST Relay | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC scaleable into 600 Ohms max Relay: SPST, 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC. | Current | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | - | 4 oz | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | 0 to 20 mA dc | |
32A133891,420 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Relay, Alarm | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC. | Relay | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | - | 4 oz | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | - | |
32A050935,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Proportional Current | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Proportional current: 0 to 20 mADC scaleable into 600 Ohms max | Current | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | - | 4 oz | - | - | 0 to 20 mA dc | |
32A123891,420 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage, SPST Relay | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Switched voltage (non-isolated): 5 VDC @ 20 mA. Relay: SPST, 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC. | Voltage Pulse | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 5 Vdc | 4 oz | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | - | |
32A030821,620 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Relay, Alarm | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Relay: SPST, 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC. | Relay | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | - | 4 oz | 3 A @ 240 Vac, 1.5 A @ 240 Vac | SPST | - | |
32A020821,620 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, UL | Switched Voltage | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs | LED | IP66, NEMA Type 4X | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/32 DIN | 4 | 131 °F | 14 °F | Switched voltage (non-isolated): 5 VDC @ 20 mA. | Voltage Pulse | N/A | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 5 Vdc | 4 oz | - | - | - |
