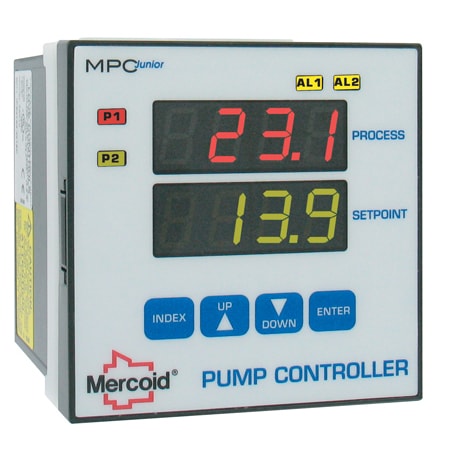

Mercoid 펌프 컨트롤러, 1/4 DIN, 듀얼 펌프, NEMA 4X, 수위 제어
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Compliance | Control Mode | Current Measurement Range | Data Interface | Display Note | Display Resolution | Display Type | Enclosure Ratings | Impedance | Input Type | Isolation | Memory Backup | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Power Consumption | Relative Humidity | Relative Humidity Note | Supply Power Note | Supply Power Type | Supply Voltage | Switch Note | Switch Rating | Switch Type | Voltage Measurement Range | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPCJR-RV-485가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS485, Modbus RTU | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 5 kΩ | Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Voltage | 7.5 VA | - | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz | |
MPCJR-RV-232가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS232 Modbus | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 5 kΩ | Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Voltage | 7.5 VA | - | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz | |
MPCJR-RC-485가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS485, Modbus RTU | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 10 kΩ | Current | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Current | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | - | 16 oz | |
MPCJR-RC-232가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS232 Modbus | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 10 kΩ | Current | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Current | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | - | 16 oz | |
MPCJR-485가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS485, Modbus RTU | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | Current: 10 Ω / Voltage: 5 kΩ | Current, Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | None | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz | |
MPCJR-232가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | RS232 Modbus | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | Current: 10 Ω / Voltage: 5 kΩ | Current, Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | None | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz | |
MPCJR-RC가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | N/A | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 10 kΩ | Current | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Current | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | - | 16 oz | |
MPCJR-RV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | N/A | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | 5 kΩ | Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | Retransmission, Voltage | 7.5 VA | - | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz | |
MPCJR가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | cULus | On/Off, Reverse/Direct Acting | 4 to 20 mA | N/A | Two 4-digit, 7 segment 0.56˝ high LED’s | 1 Count | LED | IP66, UL Type 4X | Current: 10 Ω / Voltage: 5 kΩ | Current, Voltage | 24 Vdc @ 50 mA, Regulated | Non-Volatile | 131 °F | 14 °F | None | 7.5 VA | 0 to 90% Non-Condensing | 14 to 131°F/0 to 90% up to 104°F (40°C) Non-Condensing, 10 to 50% at 131°F (55°C) Non-Condensing | 100-240 Vac nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 Vdc nominal, +10%-15%. | AC | 100 to 240 Vac | Control relays: SPDT, rated 10 A @ 240 VAC res.,1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two. | Control: SPDT, rated 10 A @ 240 Vac,1/4 hp @ 120 Vac, 1/3 hp @ 240 Vac; Alarm: SPST, 3 A @ 240 Vac, 1/10 hp @ 120 Vac; Others: 15 Vdc @ 20 mA for Rone and Rtwo | SPDT, SPST | 0 to 10 Vdc | 16 oz |
