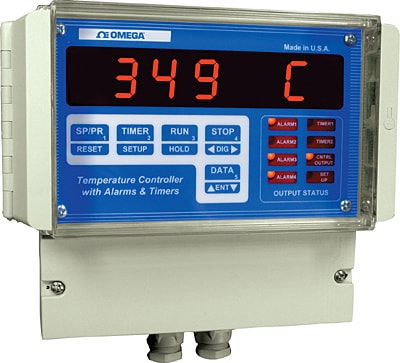

벽걸이형 프로그래머블 온도 조절기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | Cold Junction Compensation | Control Output | Conversion Rate | Display Size | Display Type | Display Type Note | Electrical Connection | Enclosure Material | Enclosure Ratings | Form factor | Height | Input Type | Length | Measurement Type | Measuring Range | Number of Control Outputs | Number of Inputs | Offset | On/Off Deadband | Output Detail | Output Signal | Proportional Band | RTD Type | Ramp and Soak | Reset | Sampling Rate | Sampling Rate Note | Scale | Supply Power Note | Supply Power Type | Supply Voltage | Thermocouple Type | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN1511TC-41,246,450 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | Selectable | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors Type J: ± 1°C ± 1 count Type K: ± 1°C ± 1 count Type T: ± 1°C ± 1 count Type E: ± 1°C ± 1 count | Error: ± 0.5°C @10 to 45°C | 6 DC pulse | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Thermocouple | 103 mm | Temperature | Type J: -200 to 1190°C Type K: -170 to 1365°C Type T: -155 to 400°C Type E: -185 to 915°C | 6 | 1 | None | 0 to FS | 6 Open Collector outputs, maximum sink capability of 50 mA per output (internal source);5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | J, K, T, E | 1.4 kg | 192 mm | |
CN1511-RTD가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 1 °C (± 1.8 °F) | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | RTD | 103 mm | Temperature | -200 to 800°C | 6 | 1 | None | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | 2252 Ω @ 25°C | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | None | 1.4 kg | 192 mm | |
CN1511-S가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Thermocouple | 103 mm | Temperature | 0 to 1600°C | 6 | 1 | None | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | S | 1.4 kg | 192 mm | |
CN1511-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 0.05 % | 0.05% FS, 0.05% ± 1 count | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Voltage | 103 mm | Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 10 (voltage) | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | None | 1.4 kg | 192 mm | |
CN1511-R가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Thermocouple | 103 mm | Temperature | 0 to 1600°C | 6 | 1 | None | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | R | 1.4 kg | 192 mm | |
CN1511-P가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 0.05 % | 9999, 999.9, 99.99, 9.999 0.05% ± 1 count | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | mV | 103 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 100 (millivolt) | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | None | 1.4 kg | 192 mm | |
CN1511-B가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Thermocouple | 103 mm | Temperature | 470 to 1800°C | 6 | 1 | None | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | B | 1.4 kg | 192 mm | |
CN1511-C가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 0.05 % | 9999, 999.9, 99.99, 9.999 0.05% ± 1 count | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | mA | 103 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 20 (current) | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | None | 1.4 kg | 192 mm | |
CN1511TC970,940 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | Selectable | 1°C/°F for T/Cs and RTDs; 0.1°C/0.2°F for thermistors Type J: ± 1°C ± 1 count Type K: ± 1°C ± 1 count Type T: ± 1°C ± 1 count Type E: ± 1°C ± 1 count | Error: ± 0.5°C @10 to 45°C | 6 SPST Relay | 7/s | 20 mm (.78 in) | 7 Digit LED | Red 7-segment LED display, 20 mm (0.8") H Display Test: 8.8.8.8.8.8.8. on power-up | Screw Terminal | Polycarbonate | IP65 | Wall Mounted | 160 mm | Thermocouple | 103 mm | Temperature | Type J: -200 to 1190°C Type K: -170 to 1365°C Type T: -155 to 400°C Type E: -185 to 915°C | 6 | 1 | None | 0 to FS | 6 Relay Outputs, SPST; 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) | None | 0 to 100% of span | None | Multiple Ramp & Soak | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | 0 to 500 sec, Variable, displayed as rate of change/time base | Digital | 120 Vac (60 Hz)—standard 220 Vac (50 Hz)—optional 15 Vdc @ 900 mA—optional | AC | 120 Vac | J, K, T, E | 1.4 kg | 192 mm |
