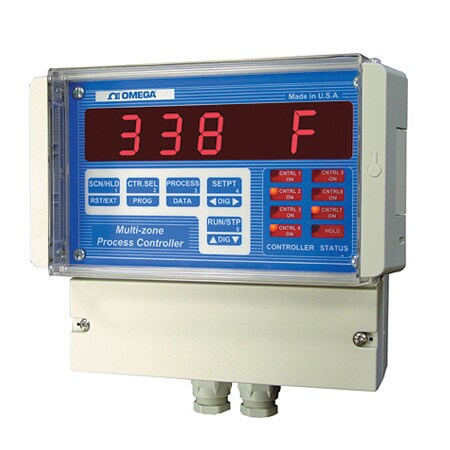

벽걸이형 4채널 및 7채널 온도 및 프로세스 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 10개의 상품
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | Additional Features 1 | Channel Display Time | Cold Junction Compensation | Control Output | Conversion Rate | Current, Max | Decimal Selection | Display Type | Display Type Note | Enclosure Material | Enclosure Ratings | Form factor | Height | Input Type | Input Type Note | Length | Measurement Type | Measuring Range | Number of Control Outputs | Number of Inputs | Offset | On/Off Deadband | Open Thermocouple Indication | Output Detail | Output Signal | Power Consumption | Proportional Band | RTD Type | Reset | Resolution | Sampling Rate | Scale | Scan Rate | Supply Power Note | Supply Power Type | Supply Voltage | Thermocouple Type | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN1517-RTD가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | RTD | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 7 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | 100 Ω Pt Sensor | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | None | 1.4 kg | 192 mm | |
CN1514-RTD가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | RTD | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 4 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | 100 Ω Pt Sensor | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | None | 1.4 kg | 192 mm | |
CN1517-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 0.05 % | 0.05% ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Voltage, Current | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Current, Voltage | 470 to 1800°C | 1 | 7 | 0 to 100 (millivolt) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | None | 1.4 kg | 192 mm | |
CN1514-MV가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 0.05 % | 0.05% ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Voltage, Current | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Current, Voltage | 470 to 1800°C | 1 | 4 | 0 to 100 (millivolt) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | None | 1.4 kg | 192 mm | |
CN1517-S가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 7 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | S | 1.4 kg | 192 mm | |
CN1517-R가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 7 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | R | 1.4 kg | 192 mm | |
CN1517-B가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 7 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | B | 1.4 kg | 192 mm | |
CN1514-S가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 4 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | S | 1.4 kg | 192 mm | |
CN1514-B가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 4 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | B | 1.4 kg | 192 mm | |
CN1514-R가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count A/D converter | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 count | Wall Mounted | Programmable from 1 to 999 seconds | Error: ± 0.5°C @10 to 45°C | None | 7/s | 4 to 20 mA, 0 to 10 Vdc | 0,001, 0,01, 0,1, None | 7 Digit LED | Red 7-segment, 7 Digit LED display, 20 mm (0.8") high Display Test: 8.8.8.8.8.8.8 on power-up | Polycarbonate | IP65 | 1/8 DIN | 160 mm | Thermocouple | J, K, T, E, R, S, B, thermistor (2252 Ω @ 25°C), Pt100 RTD 4 to 20 mA loop current Voltage—0 to 5 Vdc, 0 to 10 Vdc Millivolt—0 to 100 mV | 103 mm | Temperature | 470 to 1800°C | 1 | 4 | 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | “HELP” displayed | 5 Volts drive @ 50 mA per zone | Voltage | 6 W | 0 to 100% of span | None | 0 to 50 repeats/min | 1°C | 0 to 500 Hz (updates/second) | Digital | 2 channels per second | 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 15 Vdc @ 900 mA (optional) | AC | 100 to 240 Vac | R | 1.4 kg | 192 mm |
