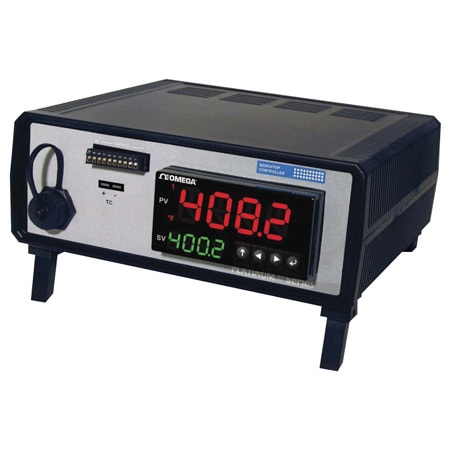

USB 지원 범용 고정밀 디지털 벤치탑 PID 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | CMRR | Control Output | Current, Max | Data Interface | Data Interface Note | Decimal Selection | Digital Filter | Display Type | Display Type Note | Form factor | Height | Input Configuration | Input Type | Input Voltage | Length | Measurement Type | Measuring Range | Number of Control Outputs | Number of Inputs | Output Detail | Output Signal | Polarity | Power Consumption | RTD Type | Ramp and Soak | Resolution | Sampling Rate | Supply Power Type | Supply Voltage | Temperature Stability | Thermistor Type | Thermocouple Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS8EPT-C24-EIP-A2,203,480 원58 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | Selectable | Process/Strain (Process Voltage): 0.03% FS,Process (Process Current ) : 0.03% FS,Type J (Iron-Constantan) : 0.4°C,Type K (CHROMEGA®-ALOMEGA® ) :1.0°C, 0.4°C,Type T (Copper-Constantan ) :1.0°C,0.4°C,Type E (CHROMEGA-Constantan ) :1.0°C ,0.4°C,Type R (Pt/13%Rh-Pt ) :1.0°C, 0.5°C,Type S (Pt/10%Rh-Pt ) :1.0°C,0.5°C,Type B (30%Rh-Pt/6%Rh-Pt ) :1.0°C,0.5°,Type C (5%Re-W/26%Re-W ) : 0.4°C,Type N (Nicrosil-Nisil ) :1.0°C ,0.4°,RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ): 0.3°C,RTD (Pt, 0.003916, 100Ω ): 0.3°C,RTD (Pt, 0.00392, 100Ω ): 0.3°,Thermistor (2252Ω) : 0.2°C,Thermistor (5K Ω) : 0.2°C,Thermistor (10K Ω) : 0.2°C | 120 dB | SSR Relay | 4 to 20 mA | Ethernet, RS485, RS232, USB | Ethernet: IEEE 802.3 10/100 Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status | 0,001, 0,01, 0,1, None | Programmable | 6 Digit LED | 4 or 6-digit, 9-segment LED with size 21 mm (83") and 10.2 mm (40"); RED, GREEN, and AMBER, and programmable colors for process variable, and temperature units | Benchtop | 108 mm | Differential | Thermocouple, RTD, Thermistor, mA, Voltage, Strain | -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vdc | 230 mm | Current, Strain, Temperature, Voltage | "Process/Strain (Process Voltage):± 50 mV, ± 100 mV, ± 1 Vdc, ± 10 Vdc, Process (Process Current ) : Scalable within 0 to 24 mA, Type J (Iron-Constantan) : -210 to 1200°C, Type K (CHROMEGA®-ALOMEGA® ) :-270 to -160°C,-160 to 1372°C, Type T (Copper-Constantan ) :-270 to -190°C,-190 to 400°C, Type E (CHROMEGA-Constantan ) :-270 to -220°C,-220 to 1000°C, Type R (Pt/13%Rh-Pt ) :-50 to 40°C,40 to 1788°C, Type S (Pt/10%Rh-Pt ) :-50 to 100°C,100 to 1768°C, Type B (30%Rh-Pt/6%Rh-Pt ) :1100 to 640°C,640 to 1820°C, Type C (5%Re-W/26%Re-W ) :0 to 2320°C, Type N (Nicrosil-Nisil ) :-250 to -100°C°,-100 to 1300°C, RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ):-200 to 850°C, RTD (Pt, 0.003916, 100Ω ): -200 to 660°C, RTD (Pt, 0.00392, 100Ω ): -200 to 660°C, Thermistor (2252Ω) : -40 to 120°C, Thermistor (5K Ω) :-30 to 140°C, Thermistor (10K Ω) : -20 to 150°C | 3 | 1 | SSR, Relay, Analog;5A SSR (internal), 3A relay max, analog process output | Current, Voltage | Bipolar | 6 W | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Profiling | 1°/0.1°; 10 µV process | 20 Hz (20 updates/second) | AC | Selectable to 5, 10, 12, 24 Vdc @ 25 mA | Temperature Stability:RTD: 0.04°C/°C;Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C;Process: 50 ppm/°C | 2252 Ω, 5K Ω, 10K Ω | J, K, T, E, R, S, B, C, N, L | 1.13 kg | |
CS8DPT-C24-EIP-A가격 문의58 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | Selectable | Process/Strain (Process Voltage): 0.03% FS,Process (Process Current ) : 0.03% FS,Type J (Iron-Constantan) : 0.4°C,Type K (CHROMEGA®-ALOMEGA® ) :1.0°C, 0.4°C,Type T (Copper-Constantan ) :1.0°C,0.4°C,Type E (CHROMEGA-Constantan ) :1.0°C ,0.4°C,Type R (Pt/13%Rh-Pt ) :1.0°C, 0.5°C,Type S (Pt/10%Rh-Pt ) :1.0°C,0.5°C,Type B (30%Rh-Pt/6%Rh-Pt ) :1.0°C,0.5°,Type C (5%Re-W/26%Re-W ) : 0.4°C,Type N (Nicrosil-Nisil ) :1.0°C ,0.4°,RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ): 0.3°C,RTD (Pt, 0.003916, 100Ω ): 0.3°C,RTD (Pt, 0.00392, 100Ω ): 0.3°,Thermistor (2252Ω) : 0.2°C,Thermistor (5K Ω) : 0.2°C,Thermistor (10K Ω) : 0.2°C | 120 dB | SSR Relay | 4 to 20 mA | Ethernet, RS485, RS232, USB | Ethernet: IEEE 802.3 10/100 Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status | 0,001, 0,01, 0,1, None | Programmable | 4 Digit LED | 4 or 6-digit, 9-segment LED with size 21 mm (83") and 10.2 mm (40"); RED, GREEN, and AMBER, and programmable colors for process variable, and temperature units | Benchtop | 108 mm | Differential | Thermocouple, RTD, Thermistor, mA, Voltage, Strain | -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vdc | 230 mm | Current, Strain, Temperature, Voltage | "Process/Strain (Process Voltage):± 50 mV, ± 100 mV, ± 1 Vdc, ± 10 Vdc, Process (Process Current ) : Scalable within 0 to 24 mA, Type J (Iron-Constantan) : -210 to 1200°C, Type K (CHROMEGA®-ALOMEGA® ) :-270 to -160°C,-160 to 1372°C, Type T (Copper-Constantan ) :-270 to -190°C,-190 to 400°C, Type E (CHROMEGA-Constantan ) :-270 to -220°C,-220 to 1000°C, Type R (Pt/13%Rh-Pt ) :-50 to 40°C,40 to 1788°C, Type S (Pt/10%Rh-Pt ) :-50 to 100°C,100 to 1768°C, Type B (30%Rh-Pt/6%Rh-Pt ) :1100 to 640°C,640 to 1820°C, Type C (5%Re-W/26%Re-W ) :0 to 2320°C, Type N (Nicrosil-Nisil ) :-250 to -100°C°,-100 to 1300°C, RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ):-200 to 850°C, RTD (Pt, 0.003916, 100Ω ): -200 to 660°C, RTD (Pt, 0.00392, 100Ω ): -200 to 660°C, Thermistor (2252Ω) : -40 to 120°C, Thermistor (5K Ω) :-30 to 140°C, Thermistor (10K Ω) : -20 to 150°C | 3 | 1 | SSR, Relay, Analog;5A SSR (internal), 3A relay max, analog process output | Current, Voltage | Bipolar | 6 W | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Profiling | 1°/0.1°; 10 µV process | 20 Hz (20 updates/second) | AC | Selectable to 5, 10, 12, 24 Vdc @ 25 mA | Temperature Stability:RTD: 0.04°C/°C;Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C;Process: 50 ppm/°C | 2252 Ω, 5K Ω, 10K Ω | J, K, T, E, R, S, B, C, N, L | 1.13 kg | |
CS8DPT가격 문의58 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | Selectable | Process/Strain (Process Voltage): 0.03% FS,Process (Process Current ) : 0.03% FS,Type J (Iron-Constantan) : 0.4°C,Type K (CHROMEGA®-ALOMEGA® ) :1.0°C, 0.4°C,Type T (Copper-Constantan ) :1.0°C,0.4°C,Type E (CHROMEGA-Constantan ) :1.0°C ,0.4°C,Type R (Pt/13%Rh-Pt ) :1.0°C, 0.5°C,Type S (Pt/10%Rh-Pt ) :1.0°C,0.5°C,Type B (30%Rh-Pt/6%Rh-Pt ) :1.0°C,0.5°,Type C (5%Re-W/26%Re-W ) : 0.4°C,Type N (Nicrosil-Nisil ) :1.0°C ,0.4°,RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ): 0.3°C,RTD (Pt, 0.003916, 100Ω ): 0.3°C,RTD (Pt, 0.00392, 100Ω ): 0.3°,Thermistor (2252Ω) : 0.2°C,Thermistor (5K Ω) : 0.2°C,Thermistor (10K Ω) : 0.2°C | 120 dB | SSR Relay | 4 to 20 mA | USB | Ethernet: IEEE 802.3 10/100 Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status | 0,001, 0,01, 0,1, None | Programmable | 4 Digit LED | 4 or 6-digit, 9-segment LED with size 21 mm (83") and 10.2 mm (40"); RED, GREEN, and AMBER, and programmable colors for process variable, and temperature units | Benchtop | 108 mm | Differential | Thermocouple, RTD, Thermistor, mA, Voltage, Strain | -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vdc | 230 mm | Current, Strain, Temperature, Voltage | "Process/Strain (Process Voltage):± 50 mV, ± 100 mV, ± 1 Vdc, ± 10 Vdc, Process (Process Current ) : Scalable within 0 to 24 mA, Type J (Iron-Constantan) : -210 to 1200°C, Type K (CHROMEGA®-ALOMEGA® ) :-270 to -160°C,-160 to 1372°C, Type T (Copper-Constantan ) :-270 to -190°C,-190 to 400°C, Type E (CHROMEGA-Constantan ) :-270 to -220°C,-220 to 1000°C, Type R (Pt/13%Rh-Pt ) :-50 to 40°C,40 to 1788°C, Type S (Pt/10%Rh-Pt ) :-50 to 100°C,100 to 1768°C, Type B (30%Rh-Pt/6%Rh-Pt ) :1100 to 640°C,640 to 1820°C, Type C (5%Re-W/26%Re-W ) :0 to 2320°C, Type N (Nicrosil-Nisil ) :-250 to -100°C°,-100 to 1300°C, RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ):-200 to 850°C, RTD (Pt, 0.003916, 100Ω ): -200 to 660°C, RTD (Pt, 0.00392, 100Ω ): -200 to 660°C, Thermistor (2252Ω) : -40 to 120°C, Thermistor (5K Ω) :-30 to 140°C, Thermistor (10K Ω) : -20 to 150°C | 2 | 1 | SSR, Relay, Analog;5A SSR (internal), 3A relay max, analog process output | Current, Voltage | Bipolar | 6 W | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Profiling | 1°/0.1°; 10 µV process | 20 Hz (20 updates/second) | AC | Selectable to 5, 10, 12, 24 Vdc @ 25 mA | Temperature Stability:RTD: 0.04°C/°C;Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C;Process: 50 ppm/°C | 2252 Ω, 5K Ω, 10K Ω | J, K, T, E, R, S, B, C, N, L | 1.13 kg | |
CS8EPT가격 문의58 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | Selectable | Process/Strain (Process Voltage): 0.03% FS,Process (Process Current ) : 0.03% FS,Type J (Iron-Constantan) : 0.4°C,Type K (CHROMEGA®-ALOMEGA® ) :1.0°C, 0.4°C,Type T (Copper-Constantan ) :1.0°C,0.4°C,Type E (CHROMEGA-Constantan ) :1.0°C ,0.4°C,Type R (Pt/13%Rh-Pt ) :1.0°C, 0.5°C,Type S (Pt/10%Rh-Pt ) :1.0°C,0.5°C,Type B (30%Rh-Pt/6%Rh-Pt ) :1.0°C,0.5°,Type C (5%Re-W/26%Re-W ) : 0.4°C,Type N (Nicrosil-Nisil ) :1.0°C ,0.4°,RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ): 0.3°C,RTD (Pt, 0.003916, 100Ω ): 0.3°C,RTD (Pt, 0.00392, 100Ω ): 0.3°,Thermistor (2252Ω) : 0.2°C,Thermistor (5K Ω) : 0.2°C,Thermistor (10K Ω) : 0.2°C | 120 dB | SSR Relay | 4 to 20 mA | USB | Ethernet: IEEE 802.3 10/100 Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status | 0,001, 0,01, 0,1, None | Programmable | 6 Digit LED | 4 or 6-digit, 9-segment LED with size 21 mm (83") and 10.2 mm (40"); RED, GREEN, and AMBER, and programmable colors for process variable, and temperature units | Benchtop | 108 mm | Differential | Thermocouple, RTD, Thermistor, mA, Voltage, Strain | -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vdc | 230 mm | Current, Strain, Temperature, Voltage | "Process/Strain (Process Voltage):± 50 mV, ± 100 mV, ± 1 Vdc, ± 10 Vdc, Process (Process Current ) : Scalable within 0 to 24 mA, Type J (Iron-Constantan) : -210 to 1200°C, Type K (CHROMEGA®-ALOMEGA® ) :-270 to -160°C,-160 to 1372°C, Type T (Copper-Constantan ) :-270 to -190°C,-190 to 400°C, Type E (CHROMEGA-Constantan ) :-270 to -220°C,-220 to 1000°C, Type R (Pt/13%Rh-Pt ) :-50 to 40°C,40 to 1788°C, Type S (Pt/10%Rh-Pt ) :-50 to 100°C,100 to 1768°C, Type B (30%Rh-Pt/6%Rh-Pt ) :1100 to 640°C,640 to 1820°C, Type C (5%Re-W/26%Re-W ) :0 to 2320°C, Type N (Nicrosil-Nisil ) :-250 to -100°C°,-100 to 1300°C, RTD (Pt, 0.00385, 100Ω, 500Ω, 1000Ω ):-200 to 850°C, RTD (Pt, 0.003916, 100Ω ): -200 to 660°C, RTD (Pt, 0.00392, 100Ω ): -200 to 660°C, Thermistor (2252Ω) : -40 to 120°C, Thermistor (5K Ω) :-30 to 140°C, Thermistor (10K Ω) : -20 to 150°C | 2 | 1 | SSR, Relay, Analog;5A SSR (internal), 3A relay max, analog process output | Current, Voltage | Bipolar | 6 W | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Profiling | 1°/0.1°; 10 µV process | 20 Hz (20 updates/second) | AC | Selectable to 5, 10, 12, 24 Vdc @ 25 mA | Temperature Stability:RTD: 0.04°C/°C;Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C;Process: 50 ppm/°C | 2252 Ω, 5K Ω, 10K Ω | J, K, T, E, R, S, B, C, N, L | 1.13 kg |
