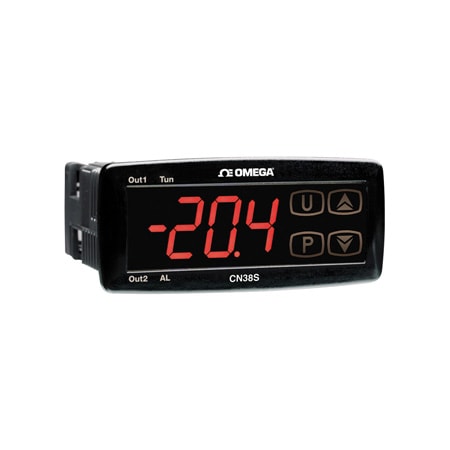

민감한 터치 키패드가 장착된 온도 자동 조정 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 27개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Additional Features 1 | Burn-Out | Category of Overvoltage | Cold Junction Compensation | Control Output | DC Pulse | Device Class | Display Size | Display Type | Display Type Note | Display Updating Time | Electrical Connection | Enclosure Ratings | Enclosure Ratings Note | Form factor | Height | Input Type | Isolation | Length | Measurement Type | Measuring Range | Mounting | Nominal Pulse Voltage | Number of Control Outputs | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Relative Humidity | Resolution | Sampling Rate | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Thermistor Resistance | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN38S-RTD-DC1-DC2-12V339,800 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-DC1-DC2-24V484,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TH-DC1-DC2-24V520,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TH-DC1-DC2-12V330,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TC-DC1-DC2-12V409,120 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TC-DC1-DC2-24V460,820 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-DC1-R2-24V462,920 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-DC1-R2-12V396,830 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TH-DC1-R2-12V356,460 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TH-DC1-R2-24V450,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TC-DC1-R2-24V462,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TC-DC1-R2-12V333,130 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | DC pulse, SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-R1-R2-12V333,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-R1-R2-24V417,480 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TH-R1-R2-24V425,020 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TH-R1-R2-12V402,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm | |
CN38S-TC-R1-R2-12V333,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 12 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TC-R1-R2-24V386,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | Automatic compensation 0 to 50°C; Accuracy: 0.1°C/°C @ 25°C after a warm-up (instrument switch-on) of 20 minutes | 2 SPDT Relay | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermocouple | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | J: -40 to 999°C (-40 to 999°F) K: -40 to 999°C (-40 to 999°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | None | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC/DC | 24 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-RTD-DC1-DC2351,840 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | At the end of scale | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | RTD | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | -50 to 850 (-58 to 999°F) -50.0 to 99.9 (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | 0.1°C | 1 Hz (1 update/second) | 60 °C | -25 °C | AC | 100 to 240 Vac/Vdc | None | 180 g | 35 mm | |
CN38S-TH-DC1-DC2351,840 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | ± (0.5% span ± 1 digit @25 °C | °C or °F programmable | None | II | - | 2 DC Pulse | Isolation: Output NOT isolated as regard the very low voltage parts; Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%; @ 20 mA ; Logic State 0: <0.5V | Class II | 47 mm (1.9 in) | 3 Digit LED | 3-digit single display, red, 12 mm (0.47") | 1 s | Screw Terminal | IP65 | Front Protection: IP 65 (with gasket) according to EN60070-1 for indoor use Screw Terminal: IP20 | 1/8 DIN | 78 mm | Thermistor | Reinforced isolation between low voltage (input and output relay) and frontal parts; reinforced isolation between low voltage and very low voltage parts (inputs, static outputs) | 64 mm | Temperature | PTC: -50 to 150°C (-67 to 302°F), -50.0 to 99.9°C (-67.0 to 99.9°) NTC: -50 to 110°C (-58 to 230°F), -50.0 to 99.9°C (-58.0 to 99.9°F) | Flush in panel | 2.5 KV | 2 | 1 | 50 °C | 0 °C | DC pulse/DC pulse;Output Action : Direct/reverse, programmable Contact : SPDT Contact Load : Out 1 - 8 A/250 Vac on resistive load - 3 A/250V Relay Electric Life : 100,000 operations | DC Pulse | < 95 RH% without condensation | None | 1 Hz (1 update/second) | 60 °C | -25 °C | AC | 100 to 240 Vac/Vdc | PTC: 990 Ω @ 25 °C, NTC: 10 kΩ @ 25 °C | 180 g | 35 mm |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
