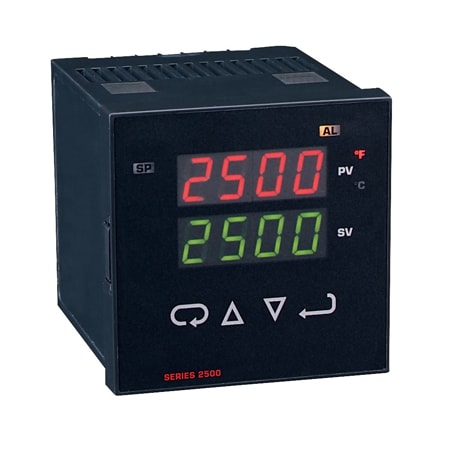

2500 시리즈 1/4 DIN PID 온도 컨트롤러, 멀티-써모커플, 방수
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Control Action | Display Note | Display Resolution | Display Type | Enclosure Ratings | Impedance Input | Input Type | Isolation | Memory Backup | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Type (A) | Output Type (B) | Power Consumption | SSR Output Range | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Sensor Type | Thermocouple Input Range Note | Weight | Voltage Output Range | Switch Rating | Switch Type | Current Output Range | RTD Input Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25125가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1° | Selectable for Reverse (Usually Heating) or Direct (Usually Cooling) | Two-4 digit, 7 segment, 0.56" high LED | 1° / 0.1° | LED | IP65, NEMA Type 4X | RTD Current: 200 µA | RTD | 500 Vac | Non-Volatile | 1/4 DIN | 4 | 131 °F | 14 °F | Proportional Isolated Current: 0-20 mA, selectable, into 600 Ohms maximum | Current | N/A | max 5 VA | - | 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | RTD | - | 13 oz | - | - | - | 4 to 20 mA | -112 to 572 °F | |
25115가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1° | Selectable for Reverse (Usually Heating) or Direct (Usually Cooling) | Two-4 digit, 7 segment, 0.56" high LED | 1° / 0.1° | LED | IP65, NEMA Type 4X | 3 MΩ | Thermocouple | 500 Vac | Non-Volatile | 1/4 DIN | 4 | 131 °F | 14 °F | Proportional Isolated Current: 0-20 mA, selectable, into 600 Ohms maximum | Current | N/A | max 5 VA | - | 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F | 13 oz | - | - | - | 4 to 20 mA | - | |
25113가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1° | Selectable for Reverse (Usually Heating) or Direct (Usually Cooling) | Two-4 digit, 7 segment, 0.56" high LED | 1° / 0.1° | LED | IP65, NEMA Type 4X | 3 MΩ | Thermocouple | 1500 Vac | Non-Volatile | 1/4 DIN | 4 | 131 °F | 14 °F | Relay: SPDT, 10 A @ 240 VAC resistive. | Relay | N/A | max 5 VA | - | 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F | 13 oz | - | 10 A @ 240 Vac | SPDT NO/NC, Selectable | - | - | |
25112가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1° | Selectable for Reverse (Usually Heating) or Direct (Usually Cooling) | Two-4 digit, 7 segment, 0.56" high LED | 1° / 0.1° | LED | IP65, NEMA Type 4X | 3 MΩ | Thermocouple | - | Non-Volatile | 1/4 DIN | 4 | 131 °F | 14 °F | Switched Voltage (non-isolated): 5 VDC @ 20 mA. | Voltage Pulse | N/A | max 5 VA | - | 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F | 13 oz | 5 Vdc | - | - | - | - | |
25111가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1° | Selectable for Reverse (Usually Heating) or Direct (Usually Cooling) | Two-4 digit, 7 segment, 0.56" high LED | 1° / 0.1° | LED | IP65, NEMA Type 4X | 3 MΩ | Thermocouple | 1500 Vac | Non-Volatile | 1/4 DIN | 4 | 131 °F | 14 °F | SSR: 2.5A @ 240 VAC resistive at 77°F (25°C). De-rates to 1.25A @ 130°F (55°C). | SSR | N/A | max 5 VA | 2.5 A @ 240 Vac | 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10% | AC/DC | 100 to 240 Vac/132 to 240 Vdc | Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F | 13 oz | - | - | - | - | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
