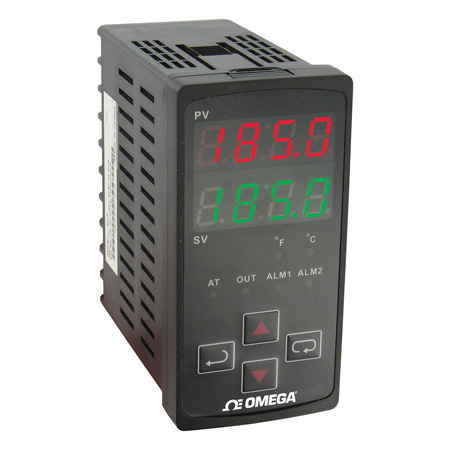

1/8 DIN 세로형 온도 컨트롤러 (자동 조정 및 RS485 포함)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Control Output | Cutout Dimensions | Data Interface | Depth Behind Panel | Display Size | Display Type | Display Type Note | Enclosure Ratings | Form factor | Input Type | Measurement Type | Measuring Range | Memory Backup | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Panel Thickness, Max | Supply Power Note | Supply Power Type | Supply Voltage | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN713293,320 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | SPDT Relay | 92 x 46 mm | RS485 Modbus | 79.2 mm | 9.53 mm (.37 in) | 4 Digit LED | Two 4-digit, 7-segment LED Display | IP66 | 1/8 DIN Vertical | Thermocouple, RTD, Thermistor | Temperature | Pt100Ω RTD: 0 to 100°C, -20 to 500°C, -200 to 600°C Type B: 100 to 1800°C Type S: 0 to 1700°C Type R: 0 to 1700°C Type N: -200 to 1300°C Type E: 0 to 600°C Type T: -20 to 400°C, -200 to 400°C Type J: -20 to 400°C, -100 to 850°C Type K: -200 to 1300°C, -200 to 500°C Type L: -200 to 500°C Type U: -200 to 800°C | Non-Volatile | 1 | 50 °C | 0 °C | Relay;SPDT, 5 A @250 Vac resistive | None | 9.5 mm | 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN712293,320 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | DC Pulse | 92 x 46 mm | RS485 Modbus | 79.2 mm | 9.53 mm (.37 in) | 4 Digit LED | Two 4-digit, 7-segment LED Display | IP66 | 1/8 DIN Vertical | Thermocouple, RTD, Thermistor | Temperature | Pt100Ω RTD: 0 to 100°C, -20 to 500°C, -200 to 600°C Type B: 100 to 1800°C Type S: 0 to 1700°C Type R: 0 to 1700°C Type N: -200 to 1300°C Type E: 0 to 600°C Type T: -20 to 400°C, -200 to 400°C Type J: -20 to 400°C, -100 to 850°C Type K: -200 to 1300°C, -200 to 500°C Type L: -200 to 500°C Type U: -200 to 800°C | Non-Volatile | 1 | 50 °C | 0 °C | DC Pulse;14V, 10 to -20% (max 40 mA) | DC Pulse | 9.5 mm | 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN715293,320 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | Analog Current | 92 x 46 mm | RS485 Modbus | 79.2 mm | 9.53 mm (.37 in) | 4 Digit LED | Two 4-digit, 7-segment LED Display | IP66 | 1/8 DIN Vertical | Thermocouple, RTD, Thermistor | Temperature | Pt100Ω RTD: 0 to 100°C, -20 to 500°C, -200 to 600°C Type B: 100 to 1800°C Type S: 0 to 1700°C Type R: 0 to 1700°C Type N: -200 to 1300°C Type E: 0 to 600°C Type T: -20 to 400°C, -200 to 400°C Type J: -20 to 400°C, -100 to 850°C Type K: -200 to 1300°C, -200 to 500°C Type L: -200 to 500°C Type U: -200 to 800°C | Non-Volatile | 1 | 50 °C | 0 °C | Current;4 to 20 mA | Current | 9.5 mm | 50/60 Hz | AC | 100 to 240 Vac | 425 g |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
