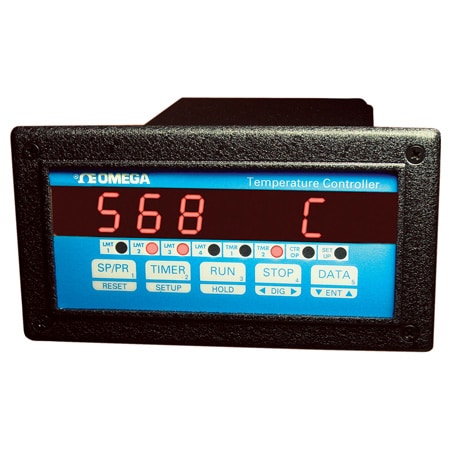

1/8 DIN 온도 및 공정 프로파일 램프 앤 소크 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 76개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | Control Output | Cutout Dimensions | Decimal Selection | Dimensions Note | Display Size | Display Type | Display Type Note | Form factor | Height | Input Type | Length | Measurement Type | Measuring Range | Number of Control Outputs | Number of Inputs | Offset | On/Off Deadband | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Proportional Band | RTD Type | Reset | Sampling Rate | Scale | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Resolution | Thermocouple Type | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN1501-RTD-2-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-2-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-1-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-TH-2-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermistor | 178 mm | Temperature | -8 to 100°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 100 °C | -8 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-1-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-TH-2-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermistor | 178 mm | Temperature | -8 to 100°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 100 °C | -8 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-TH-1-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermistor | 178 mm | Temperature | -8 to 100°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 100 °C | -8 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-TH-1-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermistor | 178 mm | Temperature | -8 to 100°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 100 °C | -8 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-V-2-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 0.05 % | 0.05% ± 1 digi | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Voltage | 178 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 10 (voltage) | 0 to FS | - | - | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 10 Vdc;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-V-2-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 0.05 % | 0.05% ± 1 digi | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Voltage | 178 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 10 (voltage) | 0 to FS | - | - | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 10 Vdc;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-V-1-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 0.05 % | 0.05% ± 1 digi | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Voltage | 178 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 10 (voltage) | 0 to FS | - | - | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 10 Vdc;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-V-1-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 0.05 % | 0.05% ± 1 digi | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Voltage | 178 mm | Current, Voltage | 1 to 30,000 counts | 6 | 1 | 0 to 10 (voltage) | 0 to FS | - | - | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 10 Vdc;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-S-2-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 cnt | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermocouple | 178 mm | Temperature | 0 to 1600°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 1600 °C | 0 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | S | 1.24 kg | 65 mm | |
CN1501-S-2-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 cnt | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermocouple | 178 mm | Temperature | 0 to 1600°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 1600 °C | 0 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 9 to 15 Vdc | None | S | 1.24 kg | 65 mm | |
CN1501-S-1-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 cnt | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermocouple | 178 mm | Temperature | 0 to 1600°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 1600 °C | 0 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | S | 1.24 kg | 65 mm | |
CN1501-S-1-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 3 °C (± 5.4 °F) | ± 3°C ± 1 cnt | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | Thermocouple | 178 mm | Temperature | 0 to 1600°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 1600 °C | 0 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | None | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | S | 1.24 kg | 65 mm | |
CN1501-RTD-4940,070 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 6 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | 4 DC pulse drivers for alarms, 2 DC pulse for timers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 120 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 4 SPST Relay, 2 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | Four 1 A alarm relays and two dc Pulse drivers;5 Vdc drive @ 50 mA max (internal 5 Vdc source);Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | DC Pulse | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 120 Vac | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 1 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | 5 Vdc Drive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 100 mV;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | None | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | DC | 8 to 15 Vdc | None | None | 1.24 kg | 65 mm | |
CN1501-RTD-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 20,000 count, dual-slope integrating | ± 1 °C (± 1.8 °F) | ± 1°C ± 1 digit | 1 DC pulse | 45 x 92 mm | 0,001, 0,01, 0,1, None | Case (Bezel Dimensions and Depth): 65 x 117 x 178 mm (2.70 x 5.07 x 6.90"), all metal enclosure | 10 mm (.39 in) | 4 Digit LED | Red 7-segment LED display, 10 mm H (0.39") Display rate Variable-displayed as rate of change/time base | 1/8 DIN | 117 mm | RTD | 178 mm | Temperature | -200 to 800°C | 6 | 1 | 0 to 100 (millivolt), 0 to 10 (voltage), 0 to 20 (current) | 0 to FS | 800 °C | -200 °C | 5 Vdc Drive;5 Vdc drive @ 50 mA max (internal 5 Vdc source) Output Range: 0 to 100 mV;Alarm Output:Single pole single throw, 1 A @ 28 Vdc or 0.5 A @ 120 Vac resistive | None | 0 to 100% of span | 2252 Ω @ 25°C | 0 to 50 repeats/min | 0 to 500 Hz (updates/second) | Digital | 120 Vac (60 Hz) standard; 220 Vac (50 Hz) and 15 Vdc @ 900 mA (optional) | AC | 240 Vac | None | None | 1.24 kg | 65 mm |
