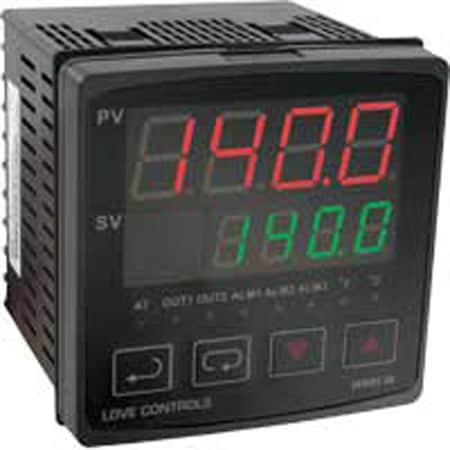

1/4 DIN 온도/프로세스 컨트롤러, 이중 출력, PID 제어, 64 램프/소크
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Compliance | Data Interface | Display Note | Display Type | Enclosure Ratings | Input Control Signal | Input Type | Memory Backup | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Note | Output Type (A) | Output Type (B) | Power Consumption | RTD Input Range | Supply Power Note | Supply Power Type | Supply Voltage | Switch Rating | Switch Type | Temperature Sensor Type | Thermocouple Input Range Note | Voltage Input Range | Voltage Output Range | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4B-53-LV가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Current | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | DC | 24 Vdc | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-63-LV가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Linear Voltage | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | DC | 24 Vdc | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-33-LV가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Relay | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | DC | 24 Vdc | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-23-LV가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Voltage Pulse | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | DC | 24 Vdc | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-63가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Linear Voltage | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | AC | 100 to 240 Vac | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-33가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Relay | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | AC | 100 to 240 Vac | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-23가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Voltage Pulse | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | AC | 100 to 240 Vac | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz | |
4B-53가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.25% span ± 1 least significant digit | CE, cULus | RS-485 Modbus ASCII/RTU | Two 4 digit, 7 segment LED’s. PV: Red, SV: Green | LED | IP56 | 0 to 20 mA | Thermocouple, RTD, DC Voltage or DC Current | Non-Volatile | 1/4 DIN | 4 | 122 °F | 32 °F | Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive | Current | Relay | max 5 VA | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F | 100-240 VAC, 50/60 Hz; Optional 24 VDC | AC | 100 to 240 Vac | 5 A @ 250 Vac | SPDT NO/NC, Selectable | RTD or Thermocouple | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F | 0 to 5 V, 0 to 10 V | 14 Vdc | 15 oz |
