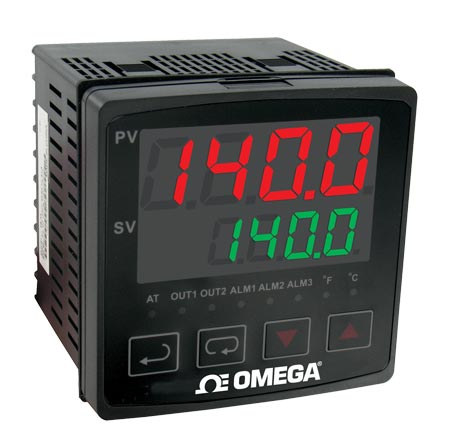

1/4 DIN 램프/소크 온도/프로세스 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Additional Features 1 | Control Output | Cutout Dimensions | Data Interface | Depth Behind Panel | Display Type | Display Type Note | Enclosure Ratings | Form factor | Height | Input Type | Length | Measurement Type | Measuring Range | Memory Backup | Number of Control Outputs | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Ramp and Soak | Supply Power Note | Supply Power Type | Supply Voltage | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN7833313,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/16 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Relay: SPDT, 5 A @ 250 Vac resistive | None | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7663369,990 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/8 DIN Vertical | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Voltage, Relay;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) Output Range: 0 to 5 or 0 to 10 Volts | Voltage, DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7823가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/16 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay, DC Pulse;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) | DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7633372,260 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/8 DIN Vertical | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Relay: SPDT, 5 A @ 250 Vac resistive | None | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7553287,420 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/32 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Current, Relay;Relay: SPDT, 5 A @ 250 Vac resistive Output Range: 4 to 20 mA | Current | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7623350,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/8 DIN Vertical | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay, DC Pulse;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) | DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7523272,060 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/32 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay, DC Pulse;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) | DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7253415,850 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/4 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Current, Relay;Relay: SPDT, 5 A @ 250 Vac resistive Output Range: 4 to 20 mA | Current | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7263427,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/4 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Voltage, Relay;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) Output Range: 0 to 5 or 0 to 10 Volts | Voltage, DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7233434,620 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/4 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay/Relay;Relay: SPDT, 5 A @ 250 Vac resistive | None | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7223427,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/4 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Relay, DC Pulse;Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (maximum 40 mA) | DC Pulse | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g | |
CN7853296,370 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% span, ± 1 least significant digit | 2 Alarm Outputs | SPDT Relay | 92 × 92 mm | RS485 Modbus | 79.2 mm | 4 Digit LED | Two 4-digit, 7-segment PV: Red, 19 mm (0.75") H SV: Green, 12.7 mm (0.5") H | IP66 | 1/16 DIN | 96 mm | Thermocouple, RTD, mA, Voltage | 15.8 mm | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | Non-Volatile | 2 | 1 | 50 °C | 0 °C | Current, Relay;Relay: SPDT, 5 A @ 250 Vac resistive Output Range: 4 to 20 mA | Current | 8 Ramp/Soak Programs, 8 Segments Each | 100 to 240 Vac, 50/60 Hz | AC | 100 to 240 Vac | 425 g |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
