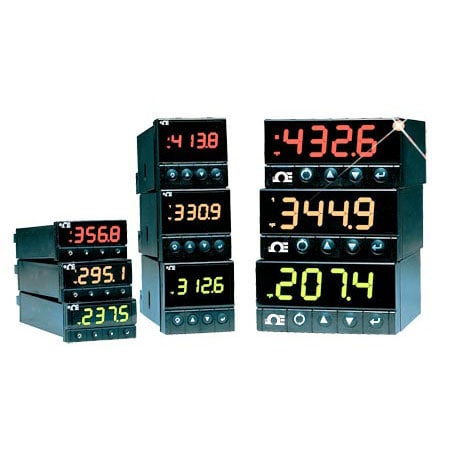

1/32, 1/16, 1/8 DIN 범용 입력 고정밀 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 501개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | Additional Features 1 | Analog Current | Approvals | CMRR | Cold Junction Compensation | Control Characteristics | Control Mode | Control Output | Current, Max | Cutout Dimensions | Data Interface | Decimal Selection | Digital Filter | Display Size | Display Type | Display Type Note | Electrical Connection | Enclosure Ratings | Form factor | Height | Impedance Input | Input Configuration | Input Type | Input Voltage | Isolated Analog Voltage | Isolation | Length | Linearization Points | Measurement Type | NMRR | Number of Control Outputs | Number of Inputs | Offset Adjustment | Output Detail | Output Signal | Polarity | RTD Type | Ramp Setpoint | Ramp and Soak | Remote Setpoint | Resolution | Sampling Rate | Set Point Adjustment | Span Adjustment | Step Response | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Stability | Thermocouple Lead Resistance, Max | Thermocouple Type | Tuning | Weight | Width | Data Interface Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CNIS8DV33-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20 mA/0 to 10 Volts, Relay SPDT 3A at 120/3 A at 240 Volts;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS8DH33-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/8 DIN Horizontal | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | DC pulse,Relay & Alarm | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS16D53-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | Analog Output, SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 45 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/16 DIN | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20mA/0 to 10 Volts, Solid State Relay/0.5A at 120/240 Volts continuous;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 159 g | 48 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS16D33-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 45 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/16 DIN | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Solid State Relay, Pulsed Driver 10 Volts at 20 mA /for use with external SSR & Alarm;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 159 g | 48 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS16D22-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 45 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/16 DIN | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20mA/0 to 10 Volts, Pulsed Driver 10 Volts at 20mA /for use with external SSR;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 159 g | 48 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS1633-C24-DC-AL가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Simplified Alarm Menus, Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | Alarms | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 45 mm | RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/16 DIN | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | 2 Relays - Form C Relay;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | None | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 12 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 159 g | 48 mm | RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS1622-C24-DC-AL가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Simplified Alarm Menus, Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | Alarms | SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 45 mm | RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/16 DIN | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | 2 SSR, 0.5A;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | None | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 12 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 159 g | 48 mm | RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNIS833-EIT-DC-AL가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.03 % | 0.03% reading | Simplified Alarm Menus, Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | Alarms | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | None | 1/8 DIN Horizontal | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | mA, Voltage, Strain | 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | Up to 10 | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | 2 Relays - Form C Relay;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | - | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | None | None | 10/1µV | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | None | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET | |
CNI822-C4EIT-DC-AL가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Simplified Alarm Menus, Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | Alarms | SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Horizontal | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | 2 SSR, 0.5A;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | None | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV54-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | Analog Output, DC Pulse | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and relay Form C SPDT 3 A @ 120 Volts 3 A @ 240 Volts;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV52-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | Analog Output, SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and relay Form C SPDT 3 A @ 120 Volts 3 A @ 240 Volts;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV53-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | Analog Output, SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and relay Form C SPDT 3 A @ 120 Volts 3 A @ 240 Volts & Alarm;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV44-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | DC Pulse | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and SSR;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV43-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | DC pulse, SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and SSR & Alarm;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV42-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | DC Pulse, SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | SPDT Relay, Relay SPDT 3A at 120/3 A at 240 Volts;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV33-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Two solid state relays (SSR) 0.5 A @ 120/240 Volts continuous;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV24-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SSR Relay, DC Pulse | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20 mA/0 to 10 Volts, Pulsed Driver 10 Volts at 20 mA /for use with external SSR;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV23-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SSR Relay, SPDT Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20 mA/0 to 10 Volts, Relay SPDT 3A at 120/3 A at 240 Volts;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DV22-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | SSR Relay | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Vertical | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Analog Output 0 to 20mA/0 to 10 Volts, Solid State Relay/0.5A at 120/240 Volts continuous;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 | |
CNI8DH54-C4EIT-DC가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dual Slope | ± 0.5 °C (± 0.9 °F) | Accuracy @ 25°C: ± 0.5°C temp nominal; 0.03% rdg ± 0.03% range process and strain | Programmable 3 Color Display | 0 to 20 mA (500 Ω maximum) | UL, C-UL, UKCA, CE per EN61010- 1:2001, F | 120 dB | 50 ppm/°C | Control Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF | PID Control, On-off control | Analog Output, DC Pulse | 0 to 20 mA (5 Ω load) | 45 x 92 mm | Ethernet, RS485, RS422, RS232 | 0,001, 0,01, 0,1, None | Programmable | 46 mm (1.8 in) | Dual 4 Digit LED | 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units | Screw Terminal | NEMA Type 1 | 1/8 DIN Horizontal | 48 mm | 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc | Single-ended | Thermocouple, RTD, mA, Voltage | 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc | 0 to 10 Vdc (max 20 mA) | Isolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test | 127 mm | None | Current, Strain, Voltage | 60 dB | 2 | 1 | -1999 to 9999 | Pulsed 10 Volts @ 20 mA (for use with external SSR) and relay Form C SPDT 3 A @ 120 Volts 3 A @ 240 Volts & Alarm;Control Output 1 and 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak Output 1: SPDT, can be configured as alarm 1 output Output 2: SPDT, can be configured as alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 52 max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output | None | Unipolar | 100/500/1000Ω Pt sensor; 2-, 3- or 4-wire; α=0.00385 or 0.00392 | Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF | Single Ramp & Soak | None | 1°/0.1°; 10 µV process | 3 Hz (3 updates/second) | Menu Configurable | 0.001 to 9999 counts | 0.7 sec for 99.9% | 12 to 36 Vdc, 24 Vac; 20 to 36 Vdc for dual display, ethernet, or isolated analog output option; Excitation Voltage Note-24 Vdc @ 25 mA (not available for low-power option) | DC | 20 to 36 Vdc | Temperature Stability: RTD: 0.04°C/°C; TC @ 25°C (77°F): 0.05°C/°C ; Cold Junction Compensation Process: 50 ppm/°C | 100 Ω | J, K, T, E, R, S, B, C, N, L (J DIN) | Autotune | 295 g | 96 mm | Ethernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGET RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability: program to transmit current display, alarm status, min/max, actual measured input value and status. RS485: Addressable from 0 to 199 |
