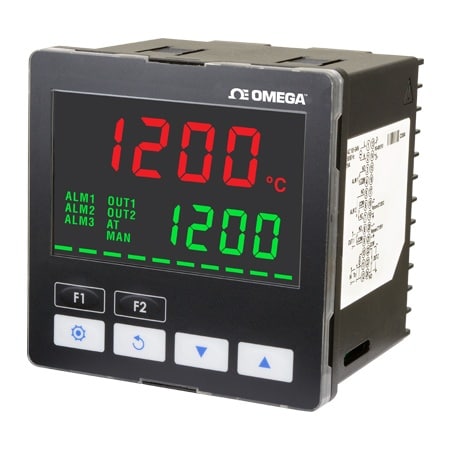

1/16, 1/8, 1/4 DIN 온도 및 프로세스 PID 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 34개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Altitude,Max | Control Mode | Control Output | Data Interface | Display Type | Display Type Note | Form factor | Input Type | Measurement Type | Measuring Range | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | RTD Type | Ramp and Soak | Relative Humidity | Sampling Rate | Sampling Rate Note | Shock Resistance | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Thermocouple Type | Vibration Resistance | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN16D3-SR-2U-CM-AC가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | DC pulse, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | DC Pulse;Voltage pulse output: 12Vdc, Max. output current 40mA;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-SR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | DC pulse, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | DC Pulse;Voltage pulse output: 12Vdc, Max. output current 40mA;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-RR-2U-CM-DC가격 문의23 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-RR-2U-CM-AC가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-MR-2U-CM-AC가격 문의25 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-MR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-LR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Voltage, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear Voltage ;Analog voltage output: 0 ~ 10Vdc;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN16D3-LR-2U-CM-AC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Voltage, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/16 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear Voltage ;Analog voltage output: 0 ~ 10Vdc;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-SR-2U-CM-AC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | DC pulse, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | DC Pulse;Voltage pulse output: 12Vdc, Max. output current 40mA;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-SR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | DC pulse, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | DC Pulse;Voltage pulse output: 12Vdc, Max. output current 40mA;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-RR-2U-CM-DC가격 문의23 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-RR-2U-CM-AC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-MR-2U-CM-AC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN08D3-MR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/8 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-RR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 3.5 Digit LCD | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-RR-2U-CM-AC가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | 2 SPDT Relay | RS485 | 4 Digit LED | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Relay and Relay;Relay output: Max. load 250Vac, 5A resistive load;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-MR-2U-CM-AC가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 4 Digit LED | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-MR-2U-CM-DC가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Current, SPDT Relay | RS485 | 4 Digit LED | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear mA;Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω);Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-LR-2U-CM-DC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Voltage, SPDT Relay | RS485 | 4 Digit LED | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear Voltage ;Analog voltage output: 0 ~ 10Vdc;Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | DC | 24 Vac/Vdc | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions | |
CN04D3-LR-2U-CM-AC가격 문의24 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2000 m | PID Control, Fuzzy Control, Self-tune, Manual tuning, On-off control | Analog Voltage, SPDT Relay | RS485 | 4 Digit LED | LCD display. Process value (PV): Yellow color, Set point (SV): Green color, 3.5 Digit Dual Display Display Accuracy: 0 or 1 digit to the right of the decimal point (selectable) | 1/4 DIN | Thermocouple, RTD, mA, Voltage | Current, Temperature, Voltage | Type K: -200 ~ 1300°C, Type J: -100 ~ 1200°C, Type T: -200 ~ 400°C, Type E: 0 ~ 600°C, Type N: -200 ~ 1300°C, Type R: 0 ~ 1700°C, Type S: 0 ~ 1700°C , Type B: 100 ~ 1800°C, Type L: -200 ~ 850°C, Type U: -200 ~ 500°C, Type TXK: -200 ~ 800°C, RTD (JPt100): -20 ~ 400°C, RTD (Pt100): -200 ~ 850°C, Resistance (Ni120): -80 ~ 300°C, Resistance (Cu50): -50 ~ 150°C, Analog Voltage Input (0~5V): -999~9999, Analog Voltage Input (0~10V): -999~9999, Analog Voltage Input (0~20m A): -999~9999, Analog Voltage Input (4~20m A): -999~9999, Analog Voltage Input (0~50m V): -999~9999 | 1 | 50 °C | 0 °C | Linear Voltage ;Analog voltage output: 0 ~ 10Vdc; Alarm Output - Relay output: Max. load 250Vac, 3A resistive load | None | 100 Ω pt or Jpt sensor; 3-wire Pt100 | Multiple Ramp & Soak | 35% ~ 80% RH（non-condensing） | 10 Hz (10 updates/second) | Analog input: 0.1 sec/scan; Thermocouple or Platinum RTD: 0.1 sec/per scan | Max. 300m/ s² , 3 times in each 3 axes, 6 directions | 65 °C | -20 °C | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ± 10%; 24 Vdc ± 10% | AC | 80 to 260 Vac | J, K, T, E, N, R, S, B, L, U, TXK | 10 to 55Hz, 10m/s² for 10min, each in X, Y and Z directions |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
