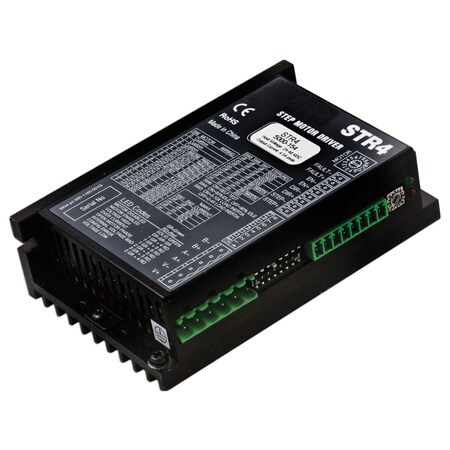

3입력/1출력 스텝 및 방향 스테퍼 드라이브
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 2 | Control Characteristics | Control Interfaces & Operating Modes | Control Mode | Driver Current | Input Control Signal | Input Voltage | Motion Precision & Smoothness | Number of Inputs | Number of Outputs | Operating Temperature, Max | Operating Temperature, Min | Process Connection | Relative Humidity | Supply Voltage | Amplifier Type | Current Rating | Electrical Rating Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STR8732,060 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dip Switch/Trim Pot | Mode Of Operation: Step and direction, Cw/Ccw Microstep Resolution: Switch selectable: 200, 200 smooth, 400, 400 smooth, 2000, 5000, 12800, 20000 steps/revolution Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps Anti Resonance: Raises the system damping ratio eliminates midrange instability and allows stable operation to 50 Rps Waveform: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 Rps Digital Noise Filter: Step pulse input: 150 Khz or 2 Mhz, jumper selectable Self TestSwitch Selectable: Rotates motor 2 revolutions in each direction Control Inputs: Step, direction, enable, optically isolated; 4 to 30 Vdc, 5 to 15 ma. Step Input: Min pulse width = 250 Ns; max pulse frequency = 2 Mhz Fault Output: Photodarlington, 80 Ma, 30 Vdc max; voltage drop = 1.2 Vdc max at 80 Ma | Step and Direction Inputs: Min pulse width = 250 ns; max pulse frequency = 2 MHz | Step and Direction | 2.35 to 8 A/Phase | 4 to 30 Vdc, 5 to 15 mA | 4 to 30 Vdc | Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps | 3 | 1 | 50 °C | 0 °C | N/A | 90% non-condensing | 24 to 75 Vdc | MOSFET, Dual H-Bridge, 4 Quadrant | Up to 8 A/phase, depending on motor selection | - | |
STR4584,400 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dip Switch/Trim Pot | Mode Of Operation: Step and direction, Cw/Ccw Microstep Resolution: Switch selectable: 200, 200 smooth, 400, 400 smooth, 2000, 5000, 12800, 20000 steps/revolution Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps Anti Resonance: Raises the system damping ratio eliminates midrange instability and allows stable operation to 50 Rps Waveform: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 Rps Digital Noise Filter: Step pulse input: 150 Khz or 2 Mhz, jumper selectable Self TestSwitch Selectable: Rotates motor 2 revolutions in each direction Control Inputs: Step, direction, enable, optically isolated; 4 to 30 Vdc, 5 to 15 ma. Step Input: Min pulse width = 250 Ns; max pulse frequency = 2 Mhz Fault Output: Photodarlington, 80 Ma, 30 Vdc max; voltage drop = 1.2 Vdc max at 80 Ma | Step and Direction Inputs: Min pulse width = 250 ns; max pulse frequency = 2 MHz | Step and Direction | 1.12 to 4.5 A/Phase | 4 to 30 Vdc, 5 to 15 mA | 4 to 30 Vdc | Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps | 3 | 1 | 50 °C | 0 °C | N/A | 90% non-condensing | 24 to 48 Vdc | MOSFET, Dual H-Bridge, 4 Quadrant | Up to 4.5 A/phase, depending on motor selection | Switch selectable of Max Current: 100%, 90%, 80%, 70% | |
STR2301,490 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dip Switch/Trim Pot | Mode Of Operation: Step and direction, Cw/Ccw Microstep Resolution: Switch selectable: 200, 200 smooth, 400, 400 smooth, 2000, 5000, 12800, 20000 steps/revolution Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps Anti Resonance: Raises the system damping ratio eliminates midrange instability and allows stable operation to 50 Rps Waveform: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 Rps Digital Noise Filter: Step pulse input: 150 Khz or 2 Mhz, jumper selectable Self TestSwitch Selectable: Rotates motor 2 revolutions in each direction Control Inputs: Step, direction, enable, optically isolated; 4 to 30 Vdc, 5 to 15 ma. Step Input: Min pulse width = 250 Ns; max pulse frequency = 2 Mhz Fault Output: Photodarlington, 80 Ma, 30 Vdc max; voltage drop = 1.2 Vdc max at 80 Ma | Step and Direction Inputs: Min pulse width = 250 ns; max pulse frequency = 2 MHz | Step and Direction | 0.3 to 2.2 A/Phase | 4 to 30 Vdc, 5 to 15 mA | 4 to 30 Vdc | Speed Range: Depends upon selected resolution amplifier is suitable for speeds up to 50 Rps | 3 | 1 | 50 °C | 0 °C | N/A | 90% non-condensing | 12 to 48 Vdc | - | - | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
