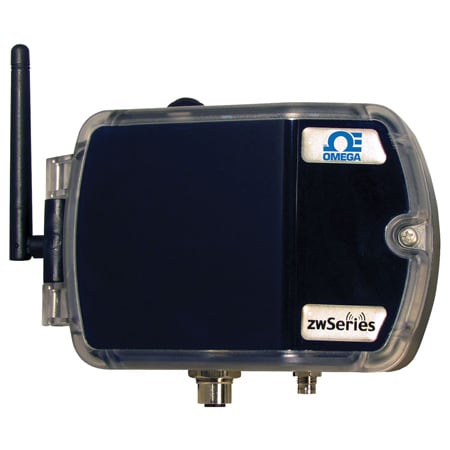

DwyerOmegaZW-ED-Series
ZW-ED
Wireless Monitoring System - Long Range Transmitters
- 가격
- 700,410 원
- VAT 10%
- 70,041 원
- 총 금액
- 770,451 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:ECCN 5A992, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU
Battery Operating Temperature:-20 to 60 °C
Compatibility:Thermocouple, RTD, and Process
Data Interface:Wireless, USB
Display Type:N/A
Electrical Connection:M12 4 pin Male
Enclosure Material:Polycarbonate
Enclosure Ratings:IP65, NEMA Type 4
Form factor:Field Mountable
Height:5.35 in
Input Type:Digital
Length:1.56 in
Number of Channels:16
Operating Temperature Note:CR2032 Battery: -20 to 60°C, Alkaline Battery: -18 to 55°C
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Probe Diameter:0 in
Probe Length:0 in
Relative Humidity:90% RH non-condensing
Sensor Type:Temperature, Humidity, Barometric Pressure
Sheath Material:N/A
Software:Compatible with the OMEGA® Dashboard
Supply Power Note:Power: 0.8 W maximum, Battery: Two C-cell 1.5Vdc Alkaline Battery (included), Optional AC Power Adaptor (UNIV-AC-100/240-5-M8): Nominal Output: 5 Vdc @ 0.6 A, Input: 100 to 240 Vdc, 50/60 Hz
Supply Power Type:AC/DC/Battery
Supply Voltage:5 to 36 Vdc
Temperature Probe Style:N/A
Width:3.23 in
Wire Length:0 ft
Wireless Range:3280 ft
Wireless Receiver Sensitivity:-96dBm
