DwyerOmegaSeries-ZV1
ZV1033

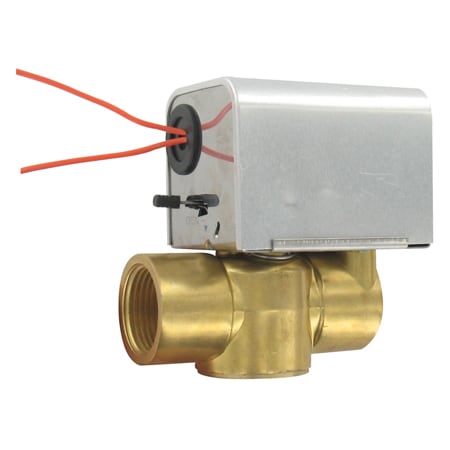

Two-way zone valve, 3/4" NPT, 230 VAC.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 19 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Close-off Pressure:22 psi
Cv Factor:3.78 gal/min
Cycle Time:Opening time: 11 s; Closing time: 5 s
Electrical Connection:Pigtail Leads
Enclosure Ratings:General purpose
Flow Characteristic:Quick Opening
Input Control Signal:On/Off
Materials:Aluminum
Materials, Wetted:Brass, Buna-N (NBR), Stainless Steel
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Operating Temperature, Max:104 °F
Operating Temperature, Min:32 °F
Port 1 Size:3/4 in
Port 1 Type:NPT Female
Port 2 Size:3/4 in
Port 2 Type:NPT Female
Power Consumption:6.5 W
Pressure Limits:Up to 300 psi
Process Temperature, Max:201 °F
Process Temperature, Min:32 °F
Supply Power Type:AC
Supply Voltage:230 Vac
Valve Type:2-way, NC
Wire Gauge:22 AWG
