DwyerOmegaSeries-XD33A

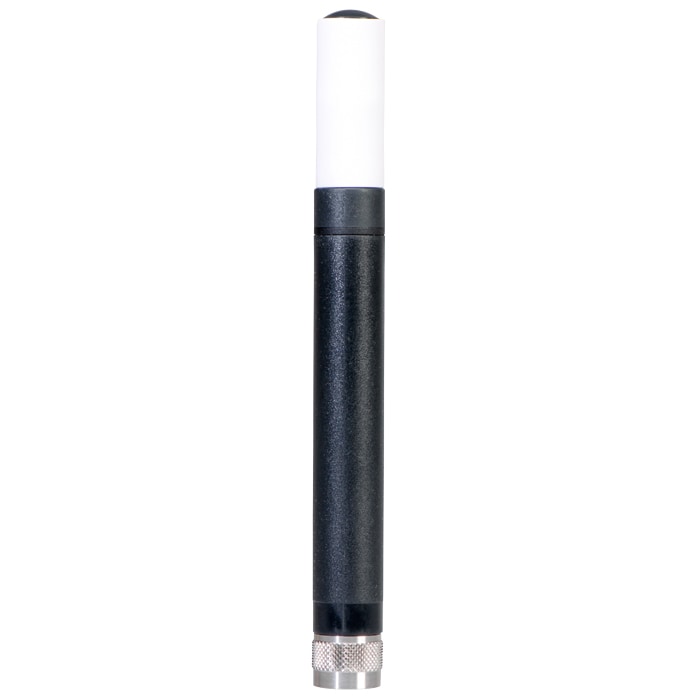

XD33A-S3X
Measures relative humidity, temperature and dew/ frost point in indoor environments and has freely scalable voltage and current outputs
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:± 0.8 % RH
Accuracy Detail:±0.8%rh at 23°C,±0.2°C at 23 °C
Applications:Air and HVAC, Electronic Equipment, Filter Monitoring, Flow Measurement, Level Monitoring and Control
Electrical Output:0 to 1 Vdc
Enclosure Ratings:IP65
Housing Material:Polycarbonate
Length:140.3 mm
Measurement Range Note:0 to 100% RH,-40 to 85 °C
Output Detail:Humidity: 0 to 100% RH, Temperature:-40 to 60°C
Probe Style:Interchangeable Probe
Sensor Type:Rotronic HygroMer HT-1,PT100 RTD, IEC 751 1/3 Class B
Series ID:Series-XD33A
Software Version:HygroSoft
Supply Power Type:AC/DC
Supply Voltage:5 to 24 Vdc, 5 to 16 Vac
Weight:0.044 lb
Width:15 mm
