DwyerOmegaXBUTPE-GROUND
XBUT35PE

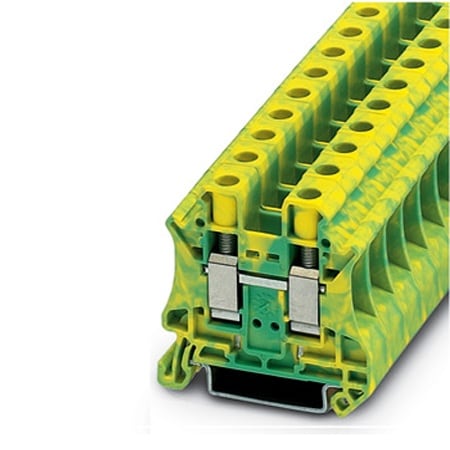

Ground Terminal Blocks
- 가격
- 25,170 원
- VAT 10%
- 2,517 원
- 총 금액
- 27,687 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:3-wire multi-conductor grounding blocks
Amperage, Max:0 A
Color Options:Blue
Compatible Wiring Note:Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.0 mm²
Contamination Class:3
Cover Width:2.2 mm
Cross-Section Area:50 mm²
Insulation Strip Length:9 mm
Load Current, Max:39 A
Number of Terminals:2
Rated Surge Voltage:6 kV
Terminal Width:16 mm
Thread Type:Metric
Tightening Torque:5.3 to 7.1 Nm
V/A/AWG Compliance:Amperage, Max (IEC 60 947-7-1)=125 A;Wire Gauge (IEC 60 947-7-1)=15 to 0 AWG;Wire Gauge (UL-cUL Ratings)=14 to 1/0 AWG
Voltage Rating:N/A
Wire Gauge:15 to 0 AWG
Wire Size, Max:35 mm²
