DwyerOmegaXBUK-HighCurrent

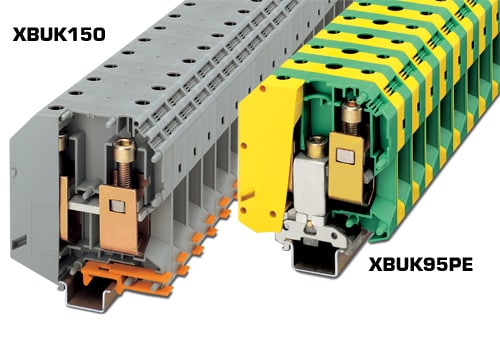

XBUK150
High Current Terminal Blocks
- 가격
- 97,580 원
- VAT 10%
- 9,758 원
- 총 금액
- 107,338 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accessory Type:Terminal Block
Additional Features 1:Screw connection high current terminal block
Amperage, Max:0 A
Color Options:Black
Compatible Wiring Note:Stranded Ferrule with Plastic Sleeve=50 - 150 mm²;Stranded with Ferrule=50 - 150 mm²;Stranded with Ferrule without Plastic Sleeve=25 - 50 mm²;Solid=25 - 50 mm²
Contamination Class:3
Cross-Section Area:150 mm²
Insulation Strip Length:40 mm
Load Current, Max:309 A
Rated Surge Voltage:8 kV
Terminal Width:31 mm
Thread Type:Metric
Tightening Torque:25 to 30 Nm
V/A/AWG Compliance:Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=726 V;Voltage Rating (IEC 60 947-7-1)=1000 V;Amperage, Max (IEC 60 947-7-1)=309 A;Amperage, Max (EN 50 019)=265 A;Amperage, Max (UL-cUL Ratings)=285 A;Wire Gauge (IEC 60 947-7-1)=2 to 300 AWG;Wire Gauge (EN 50 019)=2 to 300 AWG;Wire Gauge (UL-cUL Ratings)=2 Kcmil to 300 Kcmil
Voltage Rating:N/A
Wire Gauge:N/A
Wire Size, Max:150 mm²
