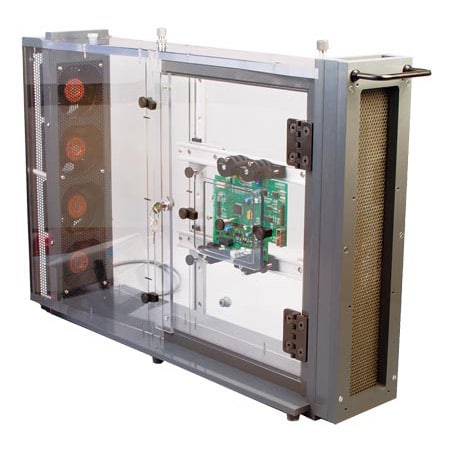

WT-2000
5 m/s Open Loop Benchtop Wind Tunnel w/ 11.3"L x 17"W x 3.25"D Test Chamber
- 가격
- 14,616,340 원
- VAT 10%
- 1,461,634 원
- 총 금액
- 16,077,974 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Control Box Dimensions:16 L x 13.8 W x 6.7 H cm
Data Interface:RS232
Fuse Rating:2A Fast Acting 5x20mm Cartridge Type
Height:48.4 cm
Length:80.5 cm
Linear Flow Rate, Max:5 m/s
Linear Flow Rate, Min:0 m/s
Motor Speed:3800 RPM
Motor Voltage:12 Vdc
Motor Voltage Note:12 Vdc @ 0.47A ea (5.6W ea) x 4
Noise Level Range:61 dBA
Operating Humidity:0 to 80% RH
Operating Temperature, Max:45 °C
Operating Temperature, Min:5 °C
Software:WT-2000 User Software
Supply Voltage:90 to 264 Vac
System Requirements:• Pentium Class or higher processor • Hard Drive Space: 30 MB • Ram: 256 MB • 1 Available USB Port • 1 CD-ROM Drive
Test Section Dimensions:43 x 8.25 cm cross section (17" x 3.25")
Weight:12.48 kg
Weight Note:Wind Tunnel: 12.48 kg (27.5 lb) Electrical Control Box: 0.9 kg (2 lb)
Width:18.4 cm
