DwyerOmegaSeries-WRBT
WRBT-A-C-02-10

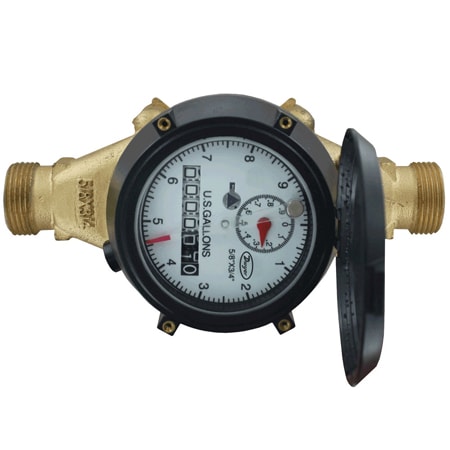

Multi-jet water meter with removable bottom, 5/8" x 3/4" pipe size, 10 gal output.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 31 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 1.5 %, ± 3% with transitional flow
Applications:Agricultural & Hydroponics Applications, Fluid Measurement and Control, HVAC
Electrical Connection:Pigtail Leads
Electrical Rating:0.01 A @ 24 Vac/Vdc
Materials, Wetted:ABS, Brass
Media Compatibility:Water
Mounting Orientation:Vertical
Nominal Flow Rate, Max:20 gal/min
Operating Temperature, Max:122 °F
Output Detail:Pulse Output with Frequency Proportional to Flow Rate
Output Signal:DC Pulse
Pipe Size:5/8 in x 3/4 in
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Proof Pressure:Up to 150 psi
Pulse Rates:10 gal/pulse
Totalizing Display, Max:9999999.99 gal
Transitional Flow:0.25 GPM
Volumetric Flow Rate, Max:20 GPM
Volumetric Flow Rate, Min:1 GPM
Weight:4.6 lb
