DwyerOmegaSeries-WNT
WNT-A-C-07-1

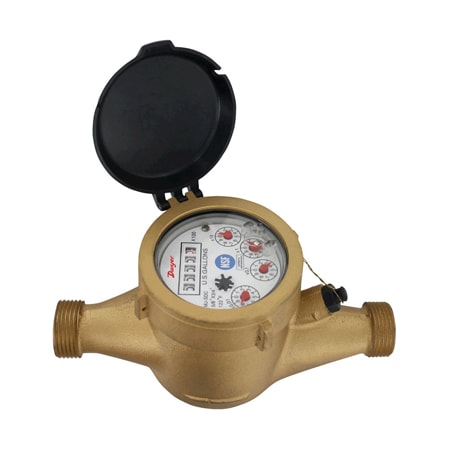

Multi-Jet water meter, 1-1/2" pipe size, NSF Certified, brass body with 1 gal pulse output.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 25 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 1.5 %, ± 3% with transitional flow
Applications:Water Quality Monitoring
Compliance:NSF
Electrical Connection:Pigtail Leads
Electrical Rating:0.01 A @ 24 Vac/Vdc
Materials, Wetted:ABS, Brass
Media Compatibility:Water
Mounting Orientation:Horizontal
Nominal Flow Rate, Max:100 gal/min
Operating Temperature, Max:122 °F
Output Detail:Pulse Output with Frequency Proportional to Flow Rate
Output Signal:DC Pulse
Pipe Size:1 1/2 in
Process Connection Size:1 1/2 in
Process Connection Type:NPT Male
Proof Pressure:Up to 150 psi
Pulse Rates:1 gal/pulse
Totalizing Display, Max:9999999.9 gal
Transitional Flow:1.25 GPM
Volumetric Flow Rate, Max:100 GPM
Volumetric Flow Rate, Min:5 GPM
Weight:12.02 lb
