DwyerOmegaSeries-WM2-WMT2
WMT2-B-C-10-10

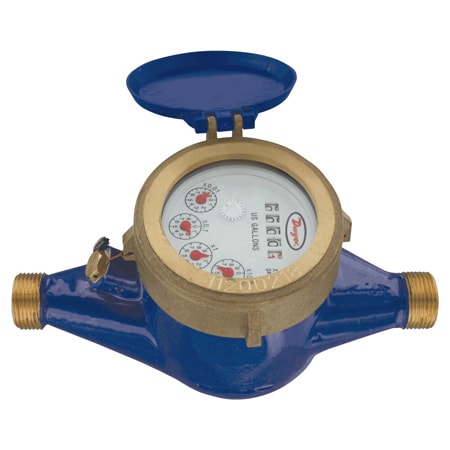

3/4" BSPT (20mm)brass multi-jet water meter (m3/h), with pulse output, 10 L/pulse.
- 가격
- 209,610 원
- VAT 10%
- 20,961 원
- 총 금액
- 230,571 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 19 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 2 %
Applications:Building and Maintenance, HVAC, Industrial and Manufacturing
Electrical Connection:Pigtail Leads
Electrical Rating:0.01 A @ 24 Vac/Vdc
Materials, Wetted:ABS, Acetal, Brass, Ferrite, Polyethylene
Media Compatibility:Water
Mounting Orientation:Vertical
Nominal Flow Rate, Max:2.5 m³/h
Operating Temperature, Max:104 °F
Output Detail:Pulse Output with Frequency Proportional to Flow Rate
Output Signal:DC Pulse
Pipe Size:20 mm
Process Connection Size:3/4 in
Process Connection Type:BSPT Male
Proof Pressure:Up to 232 psi
Pulse Rates:10 L/pulse
Totalizing Display, Max:99999.9999 m³/h
Transitional Flow:0.05 m³/h
Volumetric Flow Rate, Max:5 m³/h
Volumetric Flow Rate, Min:0.2 m³/h
Weight:2.2 kg
