DwyerOmegaModel-VRLS
VRLS-01

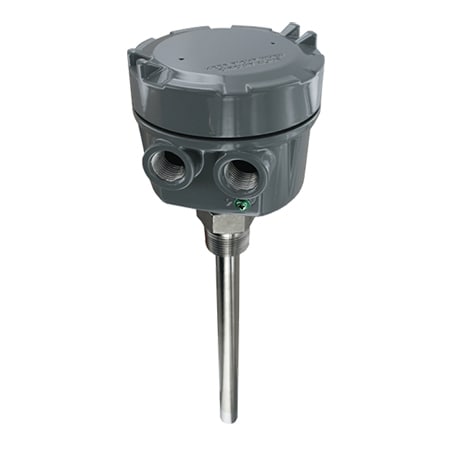

Vibrating rod level switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 23 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Industrial and Manufacturing, Level Monitoring and Control
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP65
LED Indicators:Internal: Green and Red LED
Materials:Aluminum
Materials, Wetted:304 Stainless Steel
Media Compatibility:Compatible Dry Bulk Materials, Compatible Dry Powders
Operating Temperature, Max:140 °F
Operating Temperature, Min:-40 °F
Power Consumption:15 VA
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:176 °F
Process Temperature, Min:-40 °F
Proof Pressure:Up to 150 psi
Sensitivity:20 lb/ft³
Supply Power Note:20 to 250 Vac/Vdc, 50/60 Hz
Supply Power Type:AC/DC
Supply Voltage:20 to 250 Vac/Vdc
Switch Rating:5 A @ 250 Vac
Switch Type:SPDT NO/NC, Selectable
Time Delay:0 to 6 sec
Weight:4.4 lb
