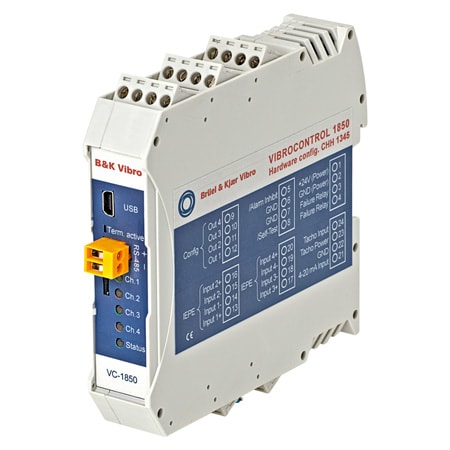

DwyerOmegaVC1850
VC-1850
1- to 4-channel vibration monitoring system
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 17 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 3.5 %
Accuracy Detail:Vibration Measurement:± 3.5%, Process Measurement:± 0.75%, Analogue output:± 1.5%, Speed Sensors:± 0.5%
Alarm Type Note:alert_and_danger_per_each_detector_with_adjustable_alarm_limits alert_delay_time_0_100_sec danger_delay_time_0_100_sec reset_time_for_alert_and_danger_0___100_sec
Applications:Bearing Conditions, Casing Vibration, Rolling Element
Approvals:CE
Approvals Note:CE, ISO 13849-1, ISO 10816-3, VDI 3832, API 670
Capacitance:10 nF
Data Interface:USB, RS-485, Ethernet
Electrical Output:4-20 mA, 0-20 mA
Enclosure Ratings:IP20
Frequency Response:10 Hz – 1,000 Hz, -1 dB, 24 dB/oct. Selectable ranges e.g. 1-300/1,000 Hz, multiple filters settings 0.7-10,000 Hz Filter response: High pass and low pass filters;refer to the setup part for the specific parameters for the Cut-off freq., pass band attenuation, Stop band freq. and Stopband attenuation
Height:110 mm
Input Configuration:Full scale vibration measuring ranges up to 1-100 mm/s,1-300 m/s2 ,0.1-15 mm Pk Pk
Input Electrical Connection:Screw Terminals
Input Range:4 to 20 mA, 0 to 20 mA
Input Resistance:≥ 450 kΩ
Input Type:Current
LED Indicators:5 light diodes indicate channel status (green, yellow, red) for each of the 4 vibration input channels, as well as for general system status
Length:114 mm
Modularity:Link Concept modularity: VIBROCONTRL 1800 Series –all components -Vibration Monitor, EtherBridge, Relay Module, Input and Output Modules can be interconnected by means of DIN rail bus connectors
Number of Channels:4
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Output Signal:Current
Recording Note:Up to 4 input channels can record digital raw data (time waveform) simultaneously to a PC running The recording can be done through: RS-485/LAN (buffered): Up to 10 kHz Mini USB (real-time): Up to 10 kHz Time waveform recording is user activated and contains scalar values for vibration and process input data at start of recording.
Sensitivity:10 to 500 mV/g
Sensor Excitation:5 mA
Sensor Type:Accelerometers CCS
Storage Temperature, Min:-40 °C
Test Function:Can be activated digitally or by PC. As default the alarm relays activate and DC outputs increase to the specified test level of 102 %
Weight:160 g
Width:23 mm
