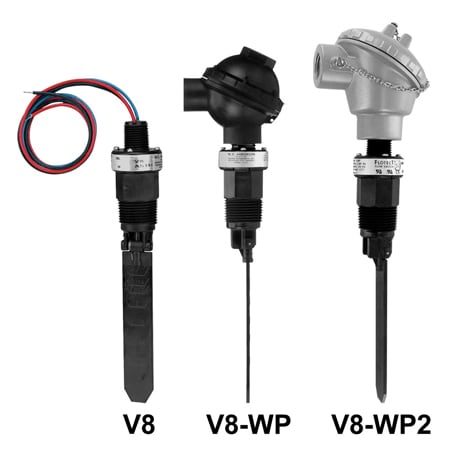

DwyerOmegaSeries-V8
V8-WP
V8-WP FLOW SW W/WP CONDUIT BOX
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:CE, cURus
Electrical Connection:1/2 in NPT male Conduit with Wire Leads
Electrical Rating:5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC
Enclosure Ratings:General purpose, Weatherproof
Enclosure Type:Weatherproof
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Mounting Orientation:Horizontal
Pipe Size, Max:6 in
Pipe Size, Min:1 in
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:212 °F
Proof Pressure:Up to 150 psi
Sensor Material:Polyphenylene Sulfide, Stainless Steel, Inconel, Ceramic
Set Point Adjustment:Vane adjustments
Switch Rating:5 A @ 125/250 Vac; 5 A, 3 A @ 30 Vdc
Switch Rating Note:5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC; MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC
Switch Type:SPDT NO/NC, Selectable
Weight:0.13 kg
Wire Gauge:18 AWG
