DwyerOmegaSeries-V10
V10

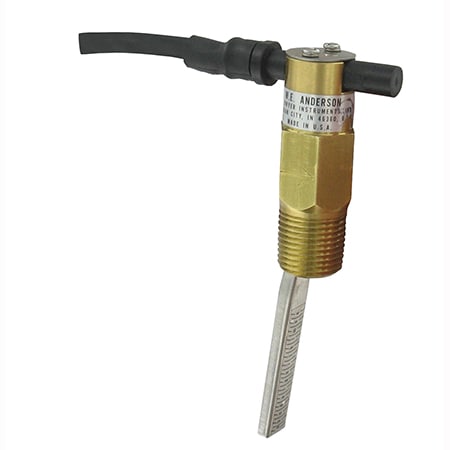

V10 BRASS, SPST REED SWITCH
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:CE, CSA, UR
Electrical Connection:Cable
Enclosure Ratings:IP66, NEMA Type 4X, Weatherproof
Materials:Nylon
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Mounting Orientation:None
Operating Temperature, Max:200 °F
Pipe Size, Max:2 in
Pipe Size, Min:0.5 in
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Proof Pressure:Up to 1000 psi
Sensor Material:Stainless Steel, Brass, Ceramic
Set Point Adjustment:Vane adjustments
Switch Rating:0.5 A @ 120 Vac, 1.5 A @ 24 Vdc, 0.001 A @ 200 Vdc
Switch Rating Note:SPST hermetically sealed reed switch. Field adjustable for normally open or normally closed, Rating: 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res.; 0.001 A @ 200 VDC res.
Switch Type:SPST Reed
Weight:0.16 kg
Wire Gauge:18 AWG
