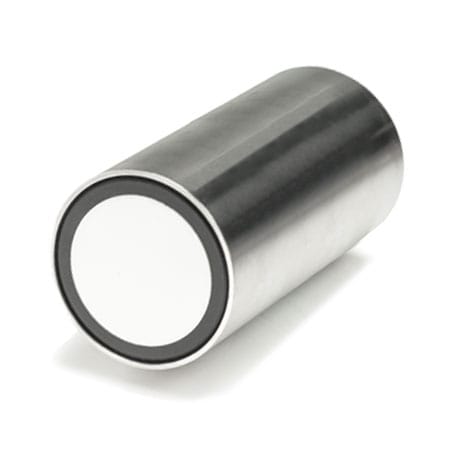

DwyerOmegaUXLR50-Series
UXLR50-CM-485
316SS, 50ft Range, Clamp Mount, 5 Outputs,RS-485
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Cable Length:6.5 ft
Data Interface:RS485
Diameter:2.3 in
Electrical Output:5 Outputs (0-10 Vdc,4-20 mA Sourcing,4-20 mA Sinking,two switches)
Enclosure Ratings:IP68, NEMA Type 4X
Length:4.8 in
Loop Resistance:450 Ω max @ > 15 Vdc, 250 Ω max @ 10 Vdc
Materials:316 Stainless Steel
Measuring Range, Max:50 ft
Measuring Range, Min:12 ft
Media Compatibility:Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Memory:Non - Volatile
Operating Humidity:0 to 100% RH
Operating Pressure, Max:50 psi
Operating Temperature, Max:70 °C
Operating Temperature, Min:-40 °C
Output Signal:Current, Voltage
Process Connection Size:30 mm
Process Connection Type:Metric Male
Resolution:0.0135 in
Transducer frequency:50 kHz
Ultrasonic Beam Width:12 ° at -3db
Weight:0.82 kg
