DwyerOmegaUTC-USB-Series

UTC-USB

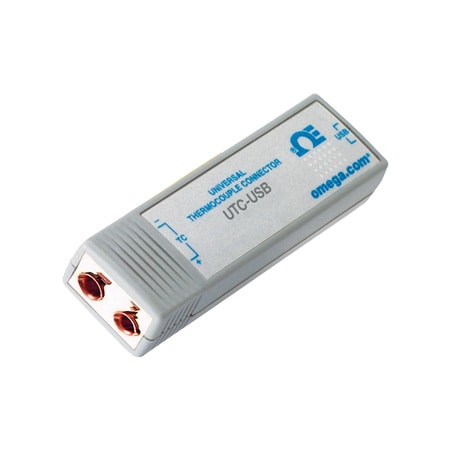

Universal Thermocouple Connector Direct USB to PC Connection

가격: 231,320 원

VAT 10%: 23,132 원

총 금액: 254,452 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.5 %

Accuracy Detail:Type J, K: ± 0.5% of reading or ± 1.0°C (1.8°F), whichever is greater Type T, E, N: ± 0.5% of reading or ± 2.0°C (3.6°F), whichever is greater Type R, S, B, C: ± 0.5% of full scale

Cable Length:1.8 m

Data Interface:USB

Data Interface Note:USB (one interface cable included with receiver)

Electrical Connection:Universal Female Thermocouple Connector

Electrical Connection Note:Patented universal female accepts both standard or miniature male connector

Enclosure:Plastic

Enclosure Note:Plastic (glass filled nylon)

Height:13 mm

Length:76 mm

Number of Pins Sockets:2

Operating Temperature, Max:70 °C

Operating Temperature, Min:-10 °C

Resolution:1 °C

Sensing Element:Thermocouple

Software Compatibility:Requires Windows® 2000, XP, VISTA (32-bit) or Windows 7 (32-bit)

Thermocouple Type:J, K, T, E, R, S, B, C, N

USB Type Note:Version 1.0, 1.1 and 2.0 compatible; mini-B connector; 1.8 m (6') cable included

Width:25.4 mm
