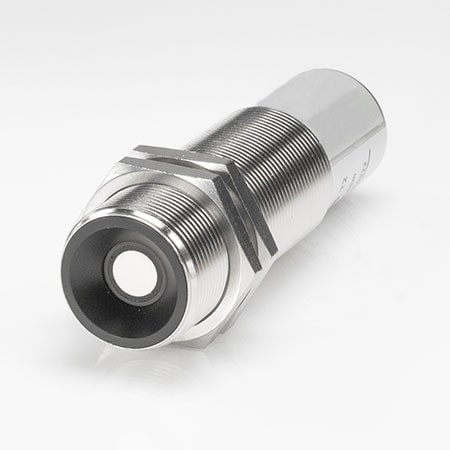

DwyerOmegaUSR03-Series
USR03-30MM-232
316SS,3ft Range, M30, Multiple Outputs, RS-232
- 가격
- 1,248,110 원
- VAT 10%
- 124,811 원
- 총 금액
- 1,372,921 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Cable Length:6.5 ft
Data Interface:RS232
Diameter:1.2 in
Electrical Output:2 Outputs (0-20 mA,0-10 V)
Enclosure Ratings:IP68, NEMA Type 4X
Length:4064 in
Loop Resistance:450 Ω max @ > 15 Vdc, 250 Ω max @ 10 Vdc
Materials:316 Stainless Steel
Measuring Range, Max:3 ft
Measuring Range, Min:1.75 in
Media Compatibility:Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Memory:Non - Volatile
Operating Humidity:0 to 100% RH
Operating Pressure, Max:50 psi
Operating Temperature, Max:70 °C
Operating Temperature, Min:-40 °C
Output Signal:Current, Voltage
Process Connection Size:30 mm
Process Connection Type:Metric Male
Resolution:0.0034 in
Transducer frequency:240 kHz
Ultrasonic Beam Width:12 ° at -3db
Weight:0.29 kg
