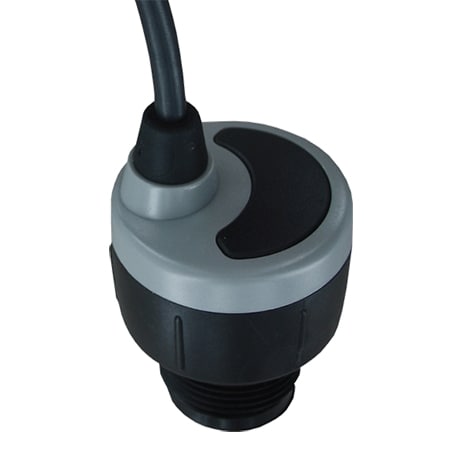

DwyerOmegaModel-ULSS
ULSS-10
4.1' (1.25 m) measuring range, non-contact transmitter, SPST programmable relays, 1" NPT thread. (USB adapter necessary for calibration. One adapter can program multiple units.)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:0.125 in
Applications:Process Automation and Control
Beam Width:2 in
Blind Zone:2 in
Compliance:CE
Deadband Note:Selectable (no hysteresis, 1/4", 1/2", 1", 1/2 cm, 1 cm, 2 cm, 5 cm or not available)
Electrical Connection:Cable
Enclosure Ratings:IP68, NEMA 6P
Lead Resistance, Max:400 Ω max
Materials:Polycarbonate, TPE
Materials, Wetted:FKM, PVDF
Measuring Range, Max:4.1 ft
Media Compatibility:Consult Factory
Memory:Non-Volatile
Mounting Orientation:Vertical
Operating Temperature, Max:140 °F
Operating Temperature, Min:-31 °F
Output Detail:4-20 mA, 2-wire; Invert: 4-20 mA or 20-4 mA; Fail-safe: 4 mA, 20 mA, 21 mA, 22 mA, or hold last
Output Signal:Current
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:140 °F
Process Temperature, Min:20 °F
Programming:Free PC Software Download (USB adaptor required)
Proof Pressure:Up to 30 psi
Resolution:0.019"
Signal fail-safe:Contact: Power Loss: Holds Last Contact; Power on: Open, close, or Last contact
Supply Power Type:DC
Supply Voltage:12 to 28 Vdc
Switch Rating:1 A max @ 28 Vdc max
Switch Type:4 SPST
Temperature Compensation Note:Automatic
Weight:1 lb
