DwyerOmegaTXUN-ST-FM-Series-Tx

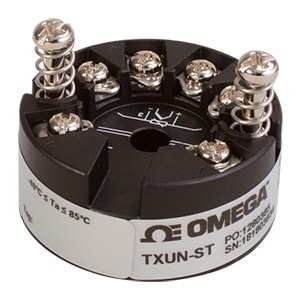

TXUN-ST
2 Wire Hockey Puck Programmable Transmitter
- 가격
- 528,750 원
- VAT 10%
- 52,875 원
- 총 금액
- 581,625 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
ADC Resolution:20 bit
Accuracy:± 0.05 %
Accuracy Detail:≤ ±0.05% of span
Approvals:"Authority Requirements: EMC: 2014/30/EU RoHS: 2011/65/EU EAC: TR-CU 020/2011"
Cable Resistance:5 Ω
Calibration:TXUN-KIT Communication Tool Kit
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Cold Junction Compensation:< ±1.0°C
DAC Resolution:16 bit
Diameter:44 mm
Drop:7.2 Vdc
EMC Standard:NAMUR NE 21
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP00, IP68
Height:20.2 mm
Humidity Range:Up to 95% non-condensing
Input Control Signal:-12 to 800 mV
Input Resistance:10 MΩ
Input Type:Thermocouple, RTD, Resistance, Voltage
Isolation:1500 V
Offset:50% of selected max. value
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Min. Signal Range: 16 mA NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA
Output Load:≤ (Vsupply - 7.2)/0.023 Ω
Power Dissipation:25 mW to 0.8 W
Probe Length:0 mm
Programmable Functions:Loop Link and HART
RTD Type:Ni100,Pt100
Response Time:1 to 60 sec
Sensor Break Detection:3.5 to 23 mA
Sensor Current:0.2 mA
Sensor Type:Transmitter
Sheath Material:N/A
Signal/Noise Ratio:> 60 dB
Stability:≤ 0.01% of span/100 Ω (Load Stability)
Supply Power Effects:< 0.005% of span/Vdc
Supply Power Type:DC
Supply Voltage:7.2 to 35 Vdc
Temperature Coefficient:≤ ±0.01%/°C
Temperature Input Range:N/A
Thermocouple Type:B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Update Rate, Max:440 ms
Vibration:IEC 60068-2-6;2 to 25 Hz: ±1.6 mm;25 to 100 Hz: ±4 g
Warm Up Time:5 min
Weight:50 g
Wiring/Connector Table:2-, 3-, or 4-Wire
