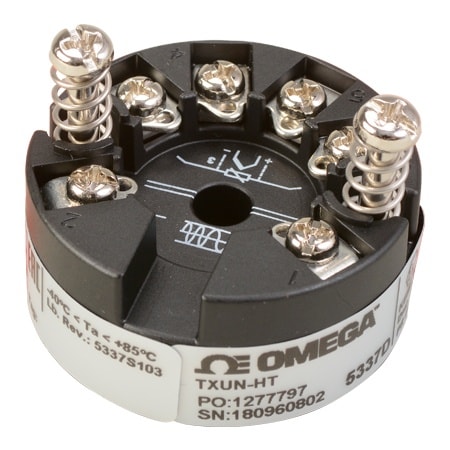

DwyerOmegaTXUN-HT-Hart-Tx
TXUN-HT
2 Wire Transmitter Hart Protocol Enabled
- 가격
- 1,086,590 원
- VAT 10%
- 108,659 원
- 총 금액
- 1,195,249 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
ADC Resolution:22 bit
Accuracy:± 0.05 %
Accuracy Detail:≤ ±0.05% of span
Additional Features 1:HART Protocol Revisions: HART 7 and HART 5
Approvals:"ATEX 2014/34/EU: KEMA 03ATEX1537 IECEx: KEM 10.0083X FM: FM17US0013X CSA: 1125003 INMETRO:NCC 12.0844 X EAC Ex TR-CU 012/2011: RU C-DK.GB08.V.00410 DNV-GL Marine: Stand. f. Certific. No. 2.4 SIL: Hardware assessed for use in SIL applications Authority Requirements: EMC: 2014/30/EU EAC: TR-CU 020/2011 "
Cable Resistance:5 Ω
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Cold Junction Compensation:Constant, internal or external via a Pt100 or Ni100 sensor
DAC Resolution:16 bit
Diameter:44 mm
Drop:8 Vdc
EMC Standard:NAMUR NE 21
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP00, IP68
Height:20.2 mm
Humidity Range:Up to 95% non-condensing
Input Control Signal:-800 to 800 mV
Input Resistance:10 MΩ
Input Type:Thermocouple, RTD, Resistance, Voltage
Isolation:1.5 kVAC / 50 VAC
Offset:50% of selected max. value
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Min. Signal Range: 16 mA NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA
Output Load:≤ (Vsupply - 8)/0.023 Ω
Probe Length:0 mm
Programmable Functions:Loop Link and HART
RTD Type:Pt50,Pt100,Pt200,Pt500,Pt1000,Ni50,Pt100,Pt120,Pt1000
Response Time:1 to 60 sec
Sensor Break Detection:3.5 to 23 mA
Sensor Current:0.2 mA
Sensor Type:Transmitter
Sheath Material:N/A
Signal/Noise Ratio:> 60 dB
Supply Power Type:DC
Supply Voltage:8 to 30 Vdc
Temperature Coefficient:≤ ±0.005%/°C
Temperature Input Range:N/A
Thermocouple Type:B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Update Rate, Max:440 ms
Vibration:IEC 60068-2-6;2 to 25 Hz: ±1.6 mm;25 to 100 Hz: ±4 g
Weight:50 g
Wiring/Connector Table:2-, 3-, or 4-Wire
