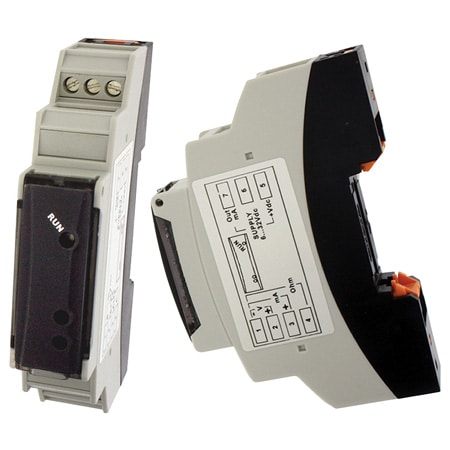

DwyerOmegaTXDIN400-Series-Tx
TXDIN402
- 가격
- 203,170 원
- VAT 10%
- 20,317 원
- 총 금액
- 223,487 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE, RoHS
CMRR:50 to 60 Hz
Current Measurement Range:0 to 20 mA
Electrical Connection:Screw Terminal
Electrical Output:FS + 5°C
Enclosure Ratings:IP20, NEMA
Height:90 mm
Input Type:Voltage, Current, Resistance
Length:64 mm
Materials:Polycarbonate, Silicone
Memory:2624 Word
Memory Note:Non-Volatile Memory (Circular Buffer) for Data Logging
Mounting:DIN Rail Mount
Number of Inputs:3
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Over-Range Output: fs + 5°C Under-Range Output: fs - 5°C
Output Signal:Current
Output Value:Process
Relative Humidity:30 to 90% RH (non condensing)
Resolution:Output Resolution: 2 μA
Response Time:600 msec
Sampling Rate:300 milliseconds between updates
Sensor Break Detection:21 mA or 3.8 mA,Selectable
Software:Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)
Standard Limits of Error:0.1% FS or 0.2 °C whichever is greater
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:2-wire loop powered; operating range 6 to 32 Vdc
Supply Power Type:Loop Powered
Supply Voltage:6 to 32 Vdc
Temperature Coefficient:<100 ppm
Voltage Measurement Range:0 to 10 Vdc
Weight:30 g
Width:18 mm
