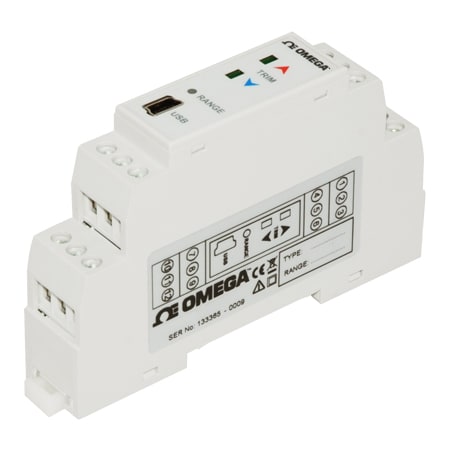

DwyerOmegaTXDIN1600S-Transmitter
TXDIN1600S
- 가격
- 457,640 원
- VAT 10%
- 45,764 원
- 총 금액
- 503,404 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 5 mV
Accuracy Detail:Input Accuracy : (mA out/2000) or 5 uA whichever is the greater, drift 1 uA/°C, Output Accuracy: ± 5 mV
Additional Features 1:Tag Number: 20 Characters
Approvals:CE
Approvals Note:CE: BS EN 61326
Baud Rate:19200
Calibration:Calibration Scaling: 2 to 6 points signal against process;Active Calibration:Active calibration against live load cell
Data Interface:USB
Display Type:LED
Drift:< ± 0.05%
Electrical Output:0 to 21.5 mA
Enclosure Ratings:IP65
Excitation Current:59 mA
Excitation Voltage:5 Vdc
Filter:1 to 20 seconds to reach 70% of final value
Height:90 mm
Impedance Input:Bridge: 85 to 10000 Ω
Input Range Note:-7.6 to 7.6 mV/V (-38 to 38) mV at 5V excitation
Input Type:Four Wire Bridge Ratiometric
Isolation:500 Vdc
LED Indicators:LED, Green when output -0.1 to 100.1%, all else red
Length:56.4 mm
Linearity:±0.01%
Materials:Polyimide 6.6
Mounting:DIN Rail 43880, Color Grey
Number of Inputs:1
Offset:Tare Input Type - Remote volt free contact, up to 10 meter distance
Operating Temperature, Max:70 °C
Operating Temperature, Min:-30 °C
Output Detail:Current: Current Source: Range (0 to 21.5) mA, max load 750 Ω Current Sink: Range 0 to 21.5 mA, supply 10 to 30 Vdc, voltage effect 0.2 uA/V Output Voltage Current Drive: ± 2 mA, min load 5000 Ω @ 10 V
Output Signal:Current, Voltage
Output Value:Process
Relative Humidity:10 to 90%RH (non condensing)
Shell Color:Gray
Software:Windows PC Software
Supply Power Note:10 to 48 Vdc, 10 to 32 Vac protected by internal 500 mA resettable fuse Power:< 1 W full power
Supply Power Type:AC/DC
Supply Voltage:10 to 48 Vdc, 10 to 32 Vac
Update Rate:10 or 80 SPS
Voltage Measurement Range:-38 to 38 mV dc
Voltage Output Range:0 to 10.1 V, ± 10.1 V
Weight:70 g
Width:17.5 mm
