DwyerOmegaTXCO-50-Carbon-Monoxide-Transmitter
TXCO-50

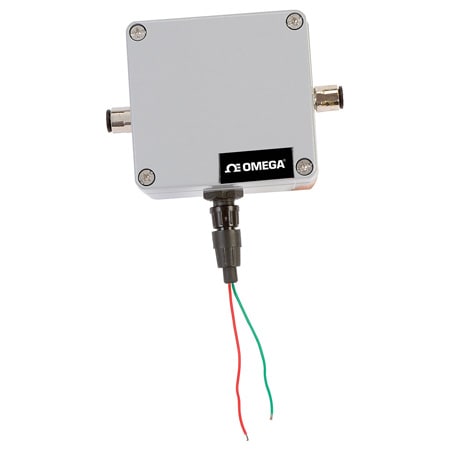

NEMA 4X, 0 to 50 PPM Carbon Monoxide Transmitter
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 2 %
Accuracy Detail:±2% FSD T = constant ±5% FSD 0>T>50°C (122ºF)
Additional Features 1:For Special Ranges Consult OMEGA
Calibration:Using a known CO calibration gas that is NIST traceable
Electrical Output:4 to 20 mA
Enclosure Material:Aluminum
Enclosure Ratings:IP65, NEMA Type 4
Height:55 mm
Lead Length:0 ft
Length:80 mm
Load Resistance:Typical 470 Ω at 18 Vdc maximum 700 Ω
Measurement Pressure, Max:1 bar
Measurement Type:Carbon Monoxide
Measuring Range:0 to 50 ppm CO
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Process Connection Size:1/4 in
Response Time:90% FSD at 20°C (68ºF) < 30 sec 90%
Sensor Type:electro chemical cell
Supply Voltage:24 Vdc
Warm Up Time:2 min
Weight:1 kg
Width:75 mm
