DwyerOmegaTX900-Srs-Transmitters

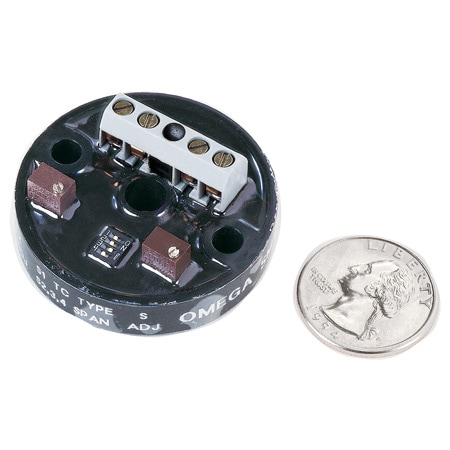

TX905
Field Rangeable Miniature 2-Wire Transmitters, Isolated Models Available
- 가격
- 498,080 원
- VAT 10%
- 49,808 원
- 총 금액
- 547,888 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:±0.1% FS (includes effects of linearity, hysteresis and repeatability)
Bandwidth:3 dB @ 3Hz
Calibration:Trimpot/Switch
Diameter:4.45 cm
Dimensions Note:TX903, TX905, TX906: 2.9 H x 4.45 cm D (1.13 x 1.75") (height includes barrier strip)
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Height:2.9 cm
Hysteresis:±0.1%
Input Control Signal:4 to 64 mV
Input Type:Voltage
Isolation:Non-Isolated
Linearity:±0.1%
Loop Resistance, Max:(Vs-8.5V)/0.02A
Operating Temperature, Max:85 °C
Operating Temperature, Min:-25 °C
Probe Length:0 cm
Repeatability:±0.1%
Sensor Type:Transmitter
Setup Controls:Trimpot/Switch
Sheath Material:N/A
Storage Temperature, Max:125 °C
Storage Temperature, Min:-65 °C
Supply Power Note:9 to 35 Vdc; 24 Vdc recommended
Supply Power Type:DC
Supply Voltage:9 to 35 Vdc
Temperature Input Range:N/A
Thermocouple Type:N/A
Weight:30 g
Zero Setting Adjustable Range:±25% mV span centered around 0 mV (or °C) RTD models ±40°F
