DwyerOmegaTX400-Srs-RFID-Prog-Tx
TX402

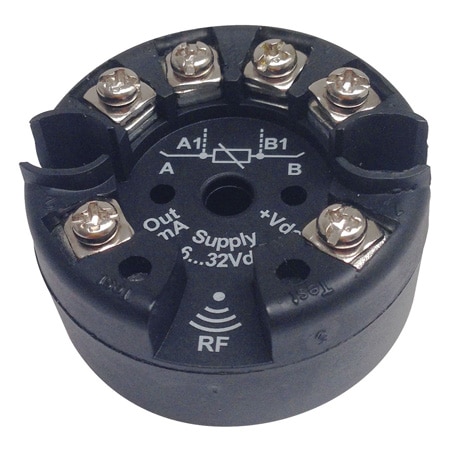

Miniature Head Mount Temperature Transmitters with RFID Communications
- 가격
- 125,680 원
- VAT 10%
- 12,568 원
- 총 금액
- 138,248 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE,EN 61000-6-4, EN 61000-6-2
Calibration:Wireless with RFID technology (NFC)
Diameter:45 mm
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP20, NEMA Type 1
Height:23 mm
Housing Material:Nylon (PA66)
Humidity Range:30 to 90% RH non condensing
Input Control Signal:-10 to 70 mV
Input Type:Thermocouple, RTD, Voltage
Isolation:Galvanic, 1 KVac input/output
Lead Resistance, Max:20 Ω
Memory:2546 Data Points
Mounting:DIN/B Head
Noise Rejection:50 to 60 Hz
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Output Error: Between 21 or 3.8 mA
Probe Length:0 mm
Programmable Functions:offset, Range, Sampling Frequency, Sensor Burnout Indication, sensor type
Protection:Current 30 mA
RTD Type:Pt100, Ni100
Resolution:1 μA
Response Time:600 ms
Sampling Time:300 ms
Sensor Type:Transmitter
Setup Controls:Wireless with RFID technology (NFC)
Sheath Material:N/A
Software:Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:2-wire loop powered; operating range 6 to 32 Vdc
Supply Power Type:DC
Supply Voltage:6 to 32 Vdc
Temperature Coefficient:Pt100: α = 0.00385 Ω/°C; Ni100: α = 0.00618 Ω/°C
Temperature Input Range:Pt100: -200 to 800 °C; Pt1000: -200 to 800 °C; Ni100: -50 to 170 °C
Thermocouple Type:J, K, T, E, R, S, B, N
Transmission Error, Max:0.1% or 0.2°C
Weight:30 g
Wiring/Connector Table:2-, 3-, or 4-Wire
