DwyerOmegaTX253-R--S-Type-TC-Tx

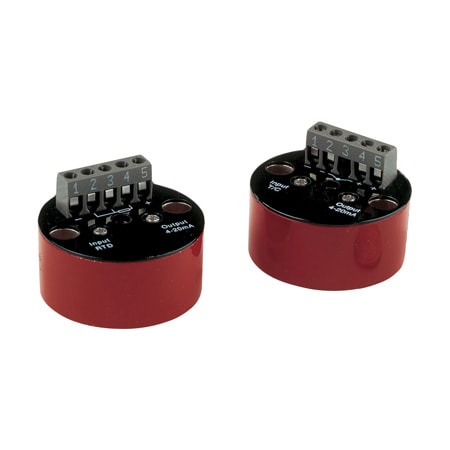

TX253
Thermocouple and RTD Transmitters
- 가격
- 272,000 원
- VAT 10%
- 27,200 원
- 총 금액
- 299,200 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:0.1% of span
Calibration:2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Cold Junction Compensation:±0.9°C (±1.6°F) typical (3°C [5.4°F] for R and S) for 0 to 60°C
Diameter:44 mm
Dimensions Note:33 H x 44 mm diameter including the terminal block
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Height:33 mm
Housing Material:Diecast zinc alloy
Humidity Range:5 to 95% RH, non-condensing
Input Type:Thermocouple
Linearity:<0.08%
Mounting Note:5 mm ID suitable for 8-32 screw
Mounting Screw Hole Diameter:5 mm
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Detail:4 to 20 mA, 28 mA limited
Output Load:(Vsupply - 10)/0.02
Probe Length:0 mm
Sensor Type:Transmitter
Setup Controls:2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Sheath Material:N/A
Span, Min:600°C
Supply Power Effects:<0.001%/1V
Supply Power Note:10 to 36 Vdc (24 Vdc recommended)
Supply Power Type:DC
Supply Voltage:10 to 36 Vdc
Temperature Input Range:R: 0 to 1750 °C;S: 0 to 1750 °C
Temperature Stability:<0.01% of span/1°C
Thermocouple Type:R,S
Weight:50 g
