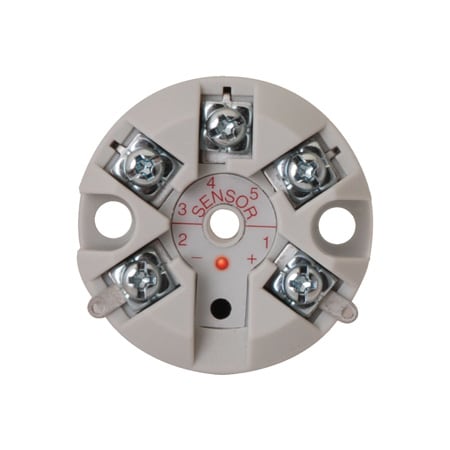

DwyerOmegaTX206TH-Thermistor-Tx
TX206TH
Thermistor Temperature Transmitter
- 가격
- 175,540 원
- VAT 10%
- 17,554 원
- 총 금액
- 193,094 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 5 µA
Accuracy Detail:(mA output/2000) or 5 uA (whichever is the greater)
Calibration:Pushbutton/Software
Diameter:43 mm
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Height:21 mm
Humidity Range:10 to 90% RH non condensing
Input Accuracy:± 0.2 %
Input Control Signal:N/A
Input Type:Thermistor
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:2-wire (4 to 20) mA current loop Maximum Output: 21.5 mA Minimum Output: <3.75 mA
Output Load:[(Vsupply-10)/21] kΩ
Probe Length:0 mm
Programmable Functions:offset, Range, Sensor Burnout Indication, sensor type
Response Time:1 sec
Self Heating Effect:0.2 uA/V
Sensor Type:Transmitter
Setup Controls:Pushbutton/Software
Sheath Material:N/A
Span, Min:5°C
Start Up Time:I out < 4 mA during start up
Storage Temperature, Max:90 °C
Storage Temperature, Min:-50 °C
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Temperature Input Range:N/A
Thermal Effects:± 2 uA/°C, ± 0.02 %/°C
Thermocouple Type:N/A
Warm Up Time:1 min to full accuracy
Weight:31 g
