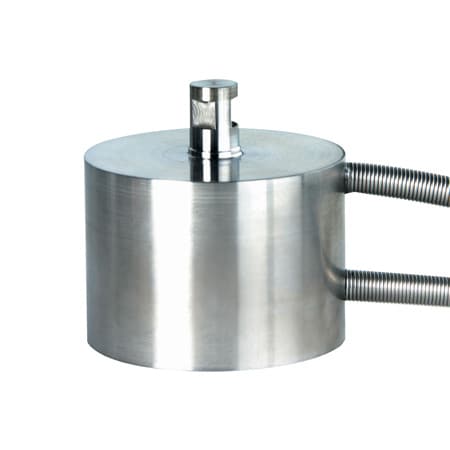

DwyerOmegaTQ601

TQ601-100/50

0 to 1,000 in-lb, 2.0 mV/V Output

가격: 4,911,430 원

VAT 10%: 491,143 원

총 금액: 5,402,573 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.1 %

Accuracy Class:0.1% to 0.25%

Accuracy Detail:Thrust Cell: ±0.10%

Additional Features 1:Dual Output

Cable Length:5 ft

Compatible Meters:DP41-S, DP25B-S

Compensated Temperature, Max:71 °C

Compensated Temperature, Min:16 °C

Electrical Connection:Cable

Electrical Output:2 mV/V

Enclosure Material:Stainless Steel

Enclosure Ratings:IP65

Hysteresis:±0.1%

Input Resistance:Thrust Cell: 360 Ω min

Linearity:±0.2%

Linearity Note:Thrust Cell: ±0.15%

Mounting:Shaft-to-Surface Mount

Number of Conductors:4

Operating Temperature, Max:107 °C

Operating Temperature, Min:-46 °C

Output Resistance:350 ± 5 Ω

Repeatability:±0.05%

Repeatability Note:Thrust Cell: ±0.05%

Rotational Speed:N/A

Safe Overload:200 %

Supply Power Note:Thrust Cell: 10 Vdc/Vac, 15 V max

Supply Power Type:DC

Supply Voltage:10 Vdc, 15 V max

Thermal Effect on Span error, Max:±0.005% rdg/°F

Thermal Effect on Zero error, Max:±0.005% FSO/°F; Thrust Cell: ±0.0025% FSO/°F

Thrust Measurement:0 to 50 lb

Torque Measurement Range:0 to 100 in-lb

Torque Measurement Type:Reaction

Ultimate Overload:300 %
