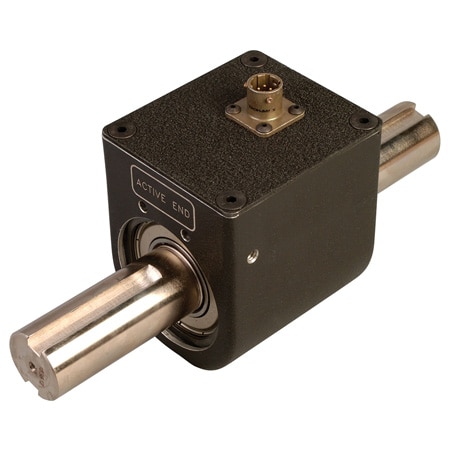

DwyerOmegaTQ513
TQ513-003
0 to 3.125 in-lb, 2.0 mV/V Output
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 26 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:Zero Balance Error: ± 1.0 %
Compensated Temperature, Max:76 °C
Compensated Temperature, Min:21 °C
Electrical Connection:Twist Lock Connector
Electrical Connection Note:4-pin twist lock connector (mating connector supplier); 10-pin twist lock connector with optional optical encoder (mating connector supplied)
Electrical Output:2 mV/V
Enclosure Material:Aluminum
Hysteresis:±0.1%
Input Resistance:1000 Ω
Key Diameter:0.0313 in
Linearity:±0.1%
Mounting:Shaft-to-Shaft Mount
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Rotational Speed:5000 rpm
Safe Overload:150 %
Shaft Diameter:0.375 in
Supply Power Type:DC
Supply Voltage:20 Vdc max
Thermal Effect on Span error, Max:±0.0036% FS/°C
Thermal Effect on Zero error, Max:±0.0036% FS/°C
Torque Measurement Range:0 to 3.125 in-lb
Torque Measurement Type:Rotary
