DwyerOmegaTH-44000-NPT
TH-44004-1/8NPT-80

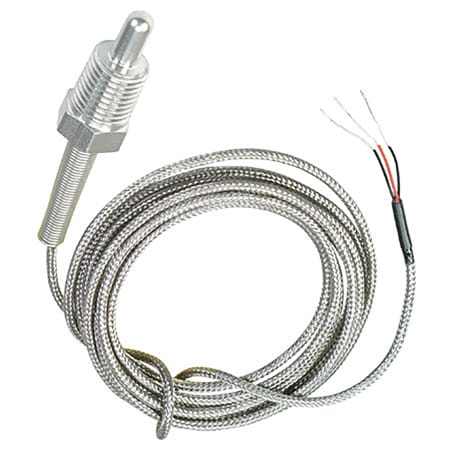

Pipe-Plug Thermistor Probes
- 가격
- 190,420 원
- VAT 10%
- 19,042 원
- 총 금액
- 209,462 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 °C (± 0.36 °F)
Cable Length:80 in
Electrical Connection:Stripped Leads
Insulation:PFA with Stainless Steel Overbraid
Insulation Note:2m (80") 26 AWG Stranded, PFA Insulated and Jacketed, SST Braided Cable with Stripped Leads Standard
Nominal Resistance:2252 Ω
Number of Wires:2
Probe Diameter:0.24 in
Probe Length:0.5 in
Probe Type:Pipe Plug Thermistor Probes
Process Connection Size:1/8 in
Process Connection Type:NPT Male
Process Temperature, Max:150 °C
Process Temperature, Min:0 °C
Sheath Material:304 Stainless Steel
Temperature Note:Max Temperature 150°C (302°F) or 75°C (167°F) Depending on Option Selected
Temperature Probe Style:Immersion Probe
Temperature Sensor Type:Thermistor
Thermistor Resistance Temperature, Max:70 °C
Thermistor Resistance Temperature, Min:0 °C
Wire Gauge:26 AWG
Wire Type:Stranded
