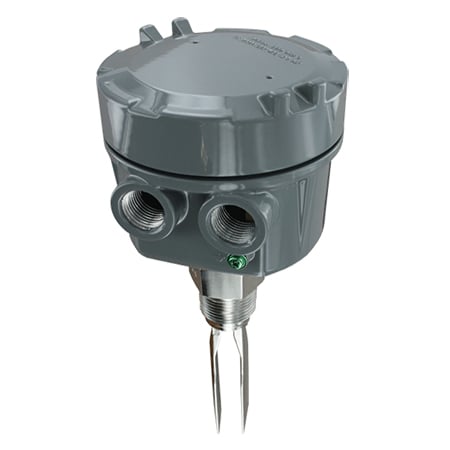

DwyerOmegaModel-TFLS2
TFLS2-01
Compact tuning fork level switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Bulk Solid Density Min:1.8 lb/ft³
Electrical Connection:Screw Terminal
Electrical Rating:5 A @ 250 Vac
Enclosure Ratings:IP65
LED Indicators:Internal: Green and Red LED’s
Materials:Aluminum
Materials, Wetted:316L Stainless Steel, Stainless Steel
Media Compatibility:Dry Powder
Operating Temperature, Max:140 °F
Operating Temperature, Min:-40 °F
Particle Size, Max:0.4 in
Power Consumption:10 VA
Pressure Limits:Up to 600 psi
Probe Length:0 in
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:266 °F
Process Temperature, Min:-40 °F
Response Time Note:Max Covered Probe: 2 s; Uncovered Probe: 3 to 7 s
Supply Power Note:20 to 250 Vac, 50/60 Hz
Supply Power Type:AC
Supply Voltage:20 to 250 Vac
Switch Type:SPDT NO/NC, Selectable
Weight:2.4 lb
