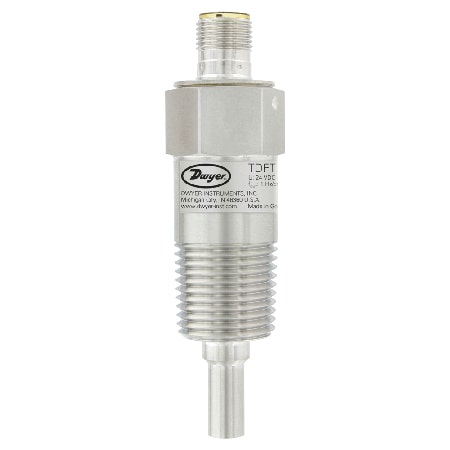

DwyerOmegaModel-TDFT
TDFT
TDFT THRM DISPERSION FLOW XMTR
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 19 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Boilers, Fluid Measurement and Control, Oil, Refrigeration, Refrigeration Equipment
Compliance:CE, cULus
Electrical Connection:M12 4 pin Male
Enclosure Material:316L Stainless Steel
Enclosure Ratings:IP67
Measurement Pressure Type:Gauge
Media Compatibility:Water-based fluids
Mounting Orientation:Horizontal, Vertical
Operating Temperature, Max:158 °F
Operating Temperature, Min:-4 °F
Output Frequency:5 to 74 Hz
Pipe Size, Max:2 in
Pipe Size, Min:0.5 in
Power Consumption:max 50 mA
Pressure Limits:Up to 362 psi
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Process Temperature, Max:140 °F
Process Temperature, Min:14 °F
Repeatability:± 10%
Repeatability Note:± 10% at 68°F (20°C)
Response Time:1 to 10 s
Sensor Material:316L Stainless Steel
Storage Temperature, Max:158 °F
Storage Temperature, Min:-40 °F
Supply Power Type:DC
Supply Voltage:24 Vdc
Switch Rating:80 mA
Velocity, Max:3 ft/s
Velocity, Min:1 ft/s
Weight:124.5 g
